LM5171 Datasheet - HTC

Boost Regulator

LM5171 Features

* Integrated Power Switch 1.5A Guaranteed

* Wide Input Voltage Range 2.7V to 30V

* High Frequency Allows for Small Components

* Minimum External Components

* Easy External Synchronization

* Frequency Foldback Reduces Component Stress During an Overcurr

LM5171 General Description

The LM5171 product is 280kHz switching regulator with a high efficiency, 1.5A integrated switch. This part operates over a wide input voltage range, from 2.7V to 30V. The flexibility of the design allows the chip to operate in most power supply configurations, including boost, flyback, forward, inve.

LM5171 Datasheet (613.44 KB)

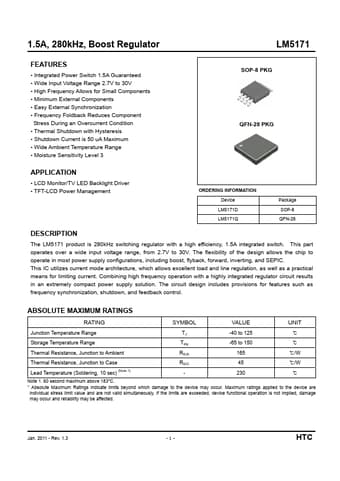

LM5171 Datasheet Preview — Preview of LM5171 PDF

Datasheet Details

Part number:

LM5171

Manufacturer:

HTC

File Size:

613.44 KB

Description:

Boost regulator.
