LM5171D, LM5171 Datasheet - HTC

LM5171D Boost Regulator

The LM5171 product is 280kHz switching regulator with a high efficiency, 1.5A integrated switch. This part operates over a wide input voltage range, from 2.7V to 30V. The flexibility of the design allows the chip to operate in most power supply configurations, including boost, flyback, forward, inve.

LM5171D Features

* Integrated Power Switch 1.5A Guaranteed

* Wide Input Voltage Range 2.7V to 30V

* High Frequency Allows for Small Components

* Minimum External Components

* Easy External Synchronization

* Frequency Foldback Reduces Component Stress During an Overcurr

LM5171-HTC.pdf

This datasheet PDF includes multiple part numbers: LM5171D, LM5171. Please refer to the document for exact specifications by model.

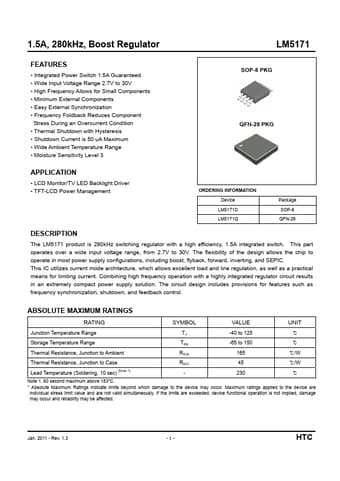

LM5171D Datasheet Preview Page 2 LM5171D Datasheet Preview Page 3

Datasheet Details

Part number:

LM5171D, LM5171

Manufacturer:

HTC

File Size:

613.44 KB

Description:

Boost regulator.

Note:

This datasheet PDF includes multiple part numbers: LM5171D, LM5171.
Please refer to the document for exact specifications by model.
