LM5170

Multiphase Bidirectional Current Controller

Texas Instruments

LM5170 Features

* Functional Safety-Capable

* Documentation available to aid functional safety system design

* Suited for high power industrial dual battery system

* 100-V HV-port and 65-V LV-port max ratings

* 1% Accurate bidirectional current regulation

* 1% Accurat

LM5170 General Description

The LM5170 controller provides the essential high voltage and precision elements of a dual-channel bidirectional converter. It regulates the average current flowing between the high voltage and low voltage ports in the direction designated by the DIR input signal. The current regulation level is pr.

LM5170 Datasheet (3.47 MB)

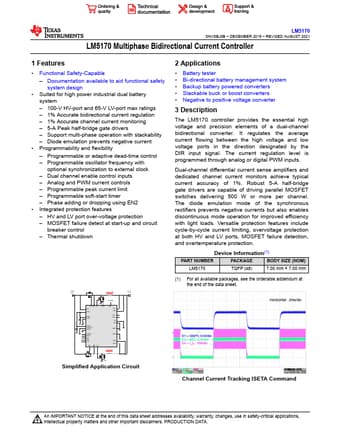

LM5170 Datasheet Preview — Preview of LM5170 PDF

Datasheet Details

Part number:

LM5170

Manufacturer:

Texas Instruments ↗

File Size:

3.47 MB

Description:

Multiphase bidirectional current controller.
