LM5171Q

Boost Regulator

LM5171Q Features

* Integrated Power Switch 1.5A Guaranteed

* Wide Input Voltage Range 2.7V to 30V

* High Frequency Allows for Small Components

* Minimum External Components

* Easy External Synchronization

* Frequency Foldback Reduces Component Stress During an Overcurr

LM5171Q General Description

The LM5171 product is 280kHz switching regulator with a high efficiency, 1.5A integrated switch. This part operates over a wide input voltage range, from 2.7V to 30V. The flexibility of the design allows the chip to operate in most power supply configurations, including boost, flyback, forward, inve.

LM5171Q Datasheet (613.44 KB)

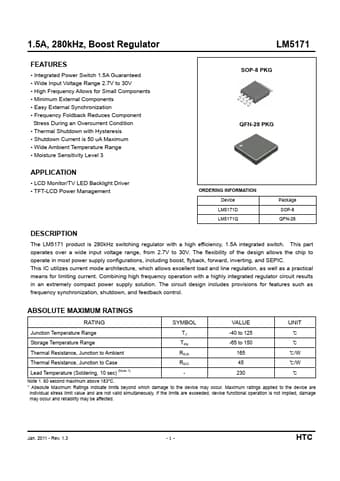

Preview of LM5171Q PDF

Datasheet Details

Part number:

LM5171Q

Manufacturer:

HTC

File Size:

613.44 KB

Description:

Boost regulator.
