LM5170-Q1

Multiphase Bidirectional Current Controller

LM5170-Q1 Features

* AEC-Q100 qualified for automotive applications:

* Device temperature grade 1:

* 40°C to +125°C ambient operating range

* Device HBM ESD classification level 2

* Device CDM ESD classification level C4B

* Functional Safety-Capable

* Documentatio

LM5170-Q1 General Description

The LM5170-Q1 controller provides the essential high voltage and precision elements of a dual-channel bidirectional converter for automotive 48-V and 12-V dual battery systems. It regulates the average current flowing between the high voltage and low voltage ports in the direction designated by the.

LM5170-Q1 Datasheet (2.98 MB)

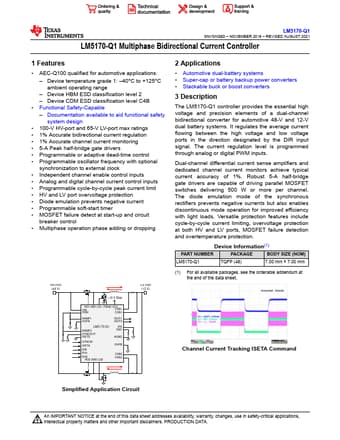

Preview of LM5170-Q1 PDF

Datasheet Details

Part number:

LM5170-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.98 MB

Description:

Multiphase bidirectional current controller.
