LM5175-Q1

Synchronous 4-Switch Buck-Boost Controller

LM5175-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified with the following results:

* Device Temperature Grade 1:

* 40°C to +125°C Ambient Operating Temperature Range

* Device HBM ESD Classification Level 2

* Device CDM ESD Classification Level C4

LM5175-Q1 General Description

The LM5175-Q1 is a synchronous four-switch buckboost DC/DC controller capable of regulating the output voltage at, above, or below the input voltage. The LM5175-Q1 operates over a wide input voltage range of 3.5 V to 42 V (60 V maximum) to support a variety of applications. The LM5175-Q1 employs cur.

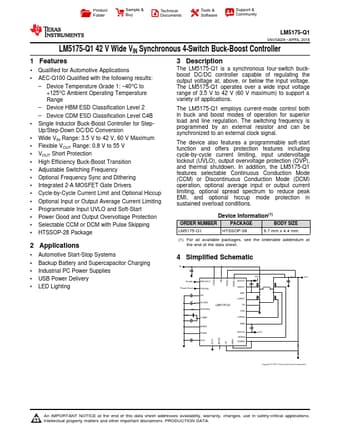

LM5175-Q1 Datasheet (1.70 MB)

Preview of LM5175-Q1 PDF

Datasheet Details

Part number:

LM5175-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.70 MB

Description:

Synchronous 4-switch buck-boost controller.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM5175-Q1 SNVSAD9

* APRIL 2016 LM5175-Q1 42 V Wide V.
