HY1904M, HY1904P Datasheet - HUAYI

HY1904M N-Channel Enhancement Mode MOSFET

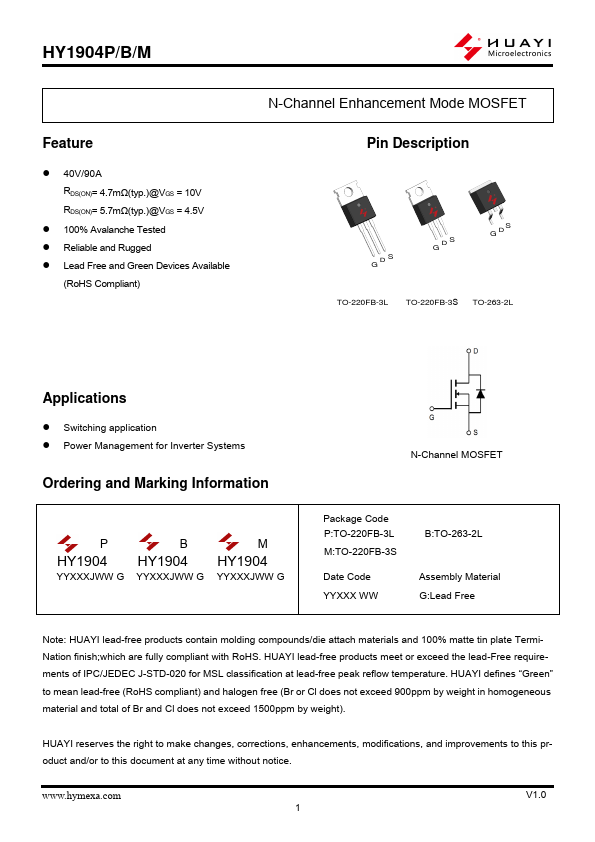

DS G DS G G DS TO-220FB-3L TO-220FB-3S TO-263-2L Applications * Switching application * Power Management for Inverter Systems Ordering and Marking Information P B M HY1904 HY1904 HY1904 YYXXXJWW G YYXXXJWW G YYXXXJWW G N-Channel MOSFET Package Code P:TO-220FB-3L M:TO-220FB-3S Dat.

HY1904P-HUAYI.pdf

This datasheet PDF includes multiple part numbers: HY1904M, HY1904P. Please refer to the document for exact specifications by model.

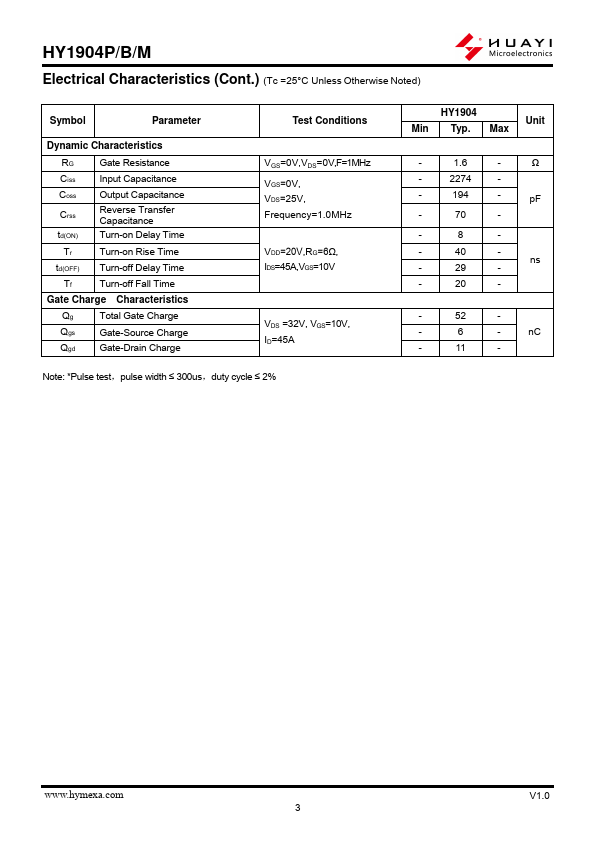

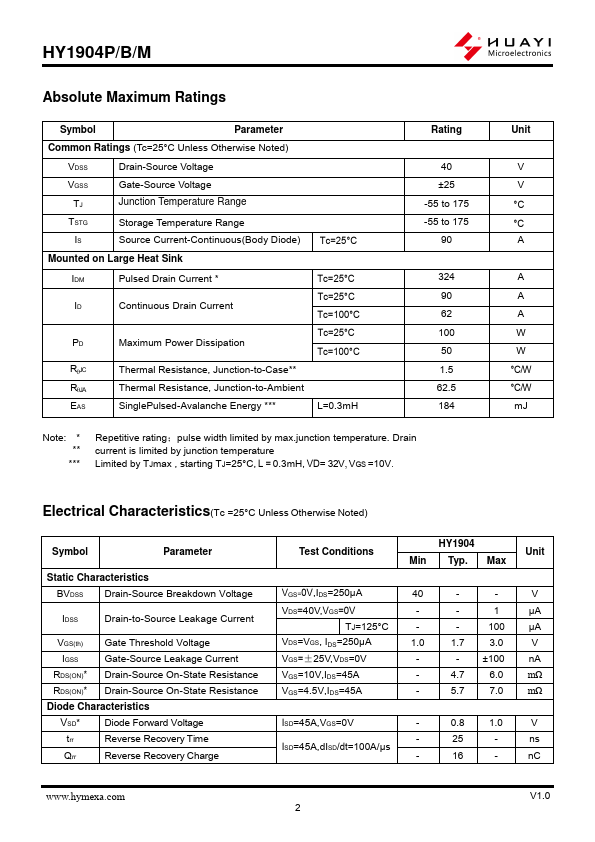

HY1904M Datasheet Preview Page 2 HY1904M Datasheet Preview Page 3

Datasheet Details

Part number:

HY1904M, HY1904P

Manufacturer:

HUAYI

File Size:

1.16 MB

Description:

N-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: HY1904M, HY1904P.
Please refer to the document for exact specifications by model.
