HY1915P N-Channel Enhancement Mode MOSFET

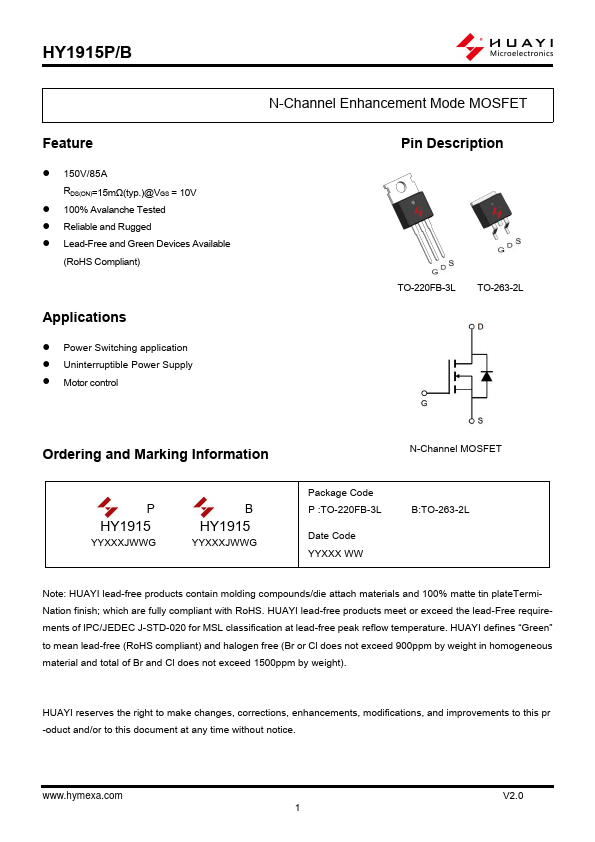

📥 Download Datasheet Datasheet Preview Page 1

Description

HY1915P/B .
TO-220FB-3L TO-263-2L Ordering and Marking Information P HY1915 YYXXXJWWG B HY1915 YYXXXJWWG N-Channel MOSFET Package Code P :TO-220FB-3L Date Co.

📥 Download Datasheet

Preview of HY1915P PDF

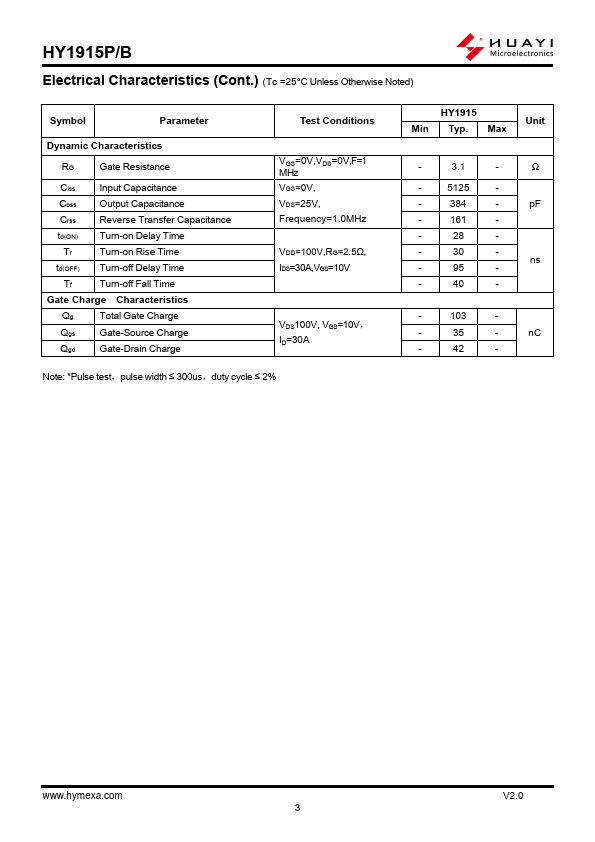

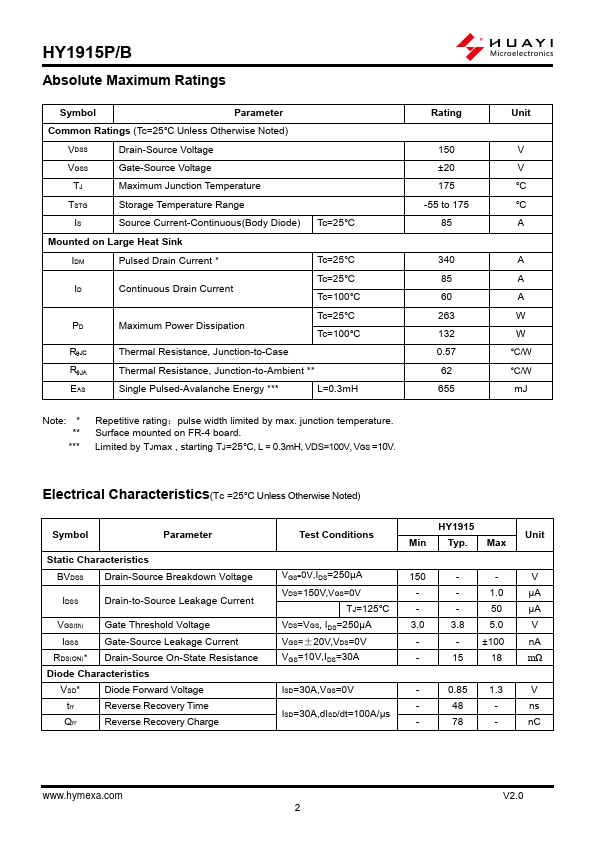

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
HY1915P
Manufacturer
HUAYI
File Size
1.65 MB
Datasheet
HY1915P-HUAYI.pdf
Description
N-Channel Enhancement Mode MOSFET

Applications

* Power Switching application
* Uninterruptible Power Supply
