HY1915B, HY1915P Datasheet - HUAYI

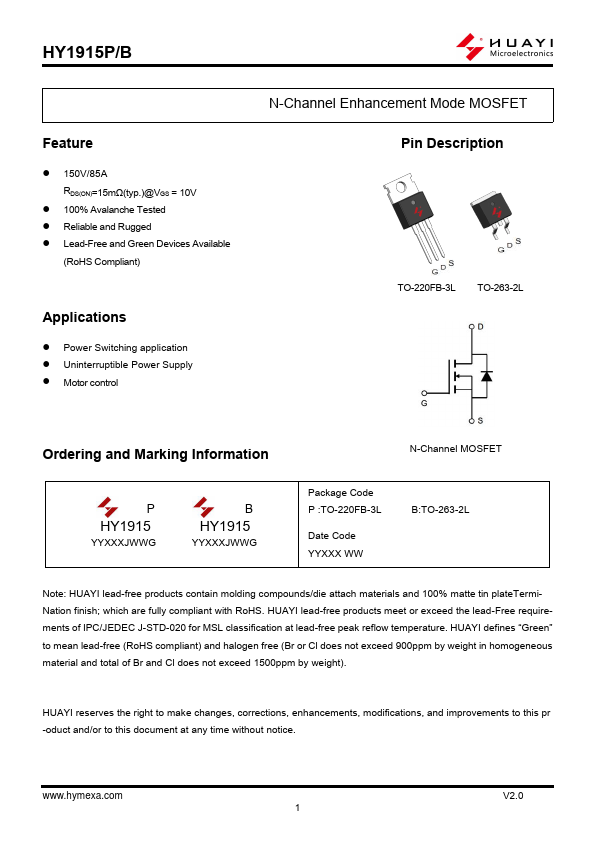

HY1915B N-Channel Enhancement Mode MOSFET

TO-220FB-3L TO-263-2L Ordering and Marking Information P HY1915 YYXXXJWWG B HY1915 YYXXXJWWG N-Channel MOSFET Package Code P :TO-220FB-3L Date Code YYXXX WW B:TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; wh.

HY1915P-HUAYI.pdf

This datasheet PDF includes multiple part numbers: HY1915B, HY1915P. Please refer to the document for exact specifications by model.

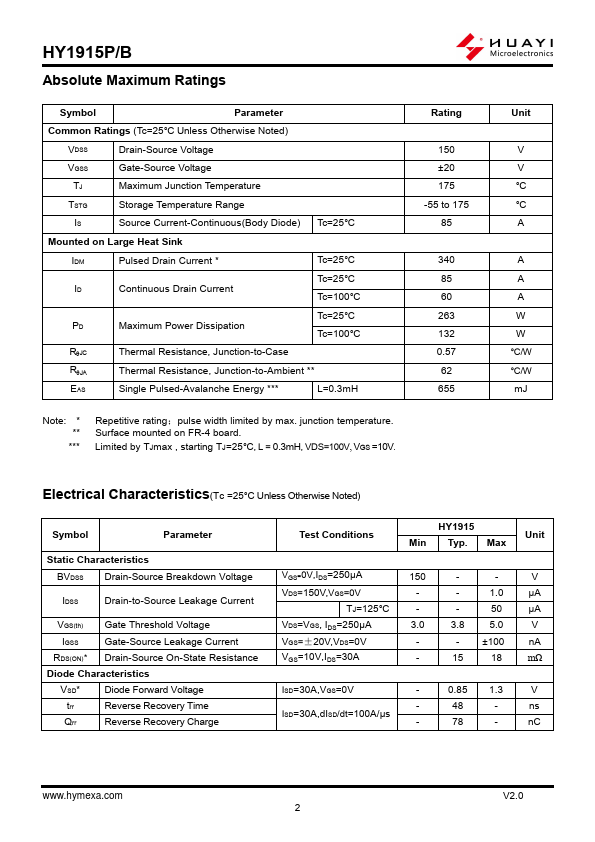

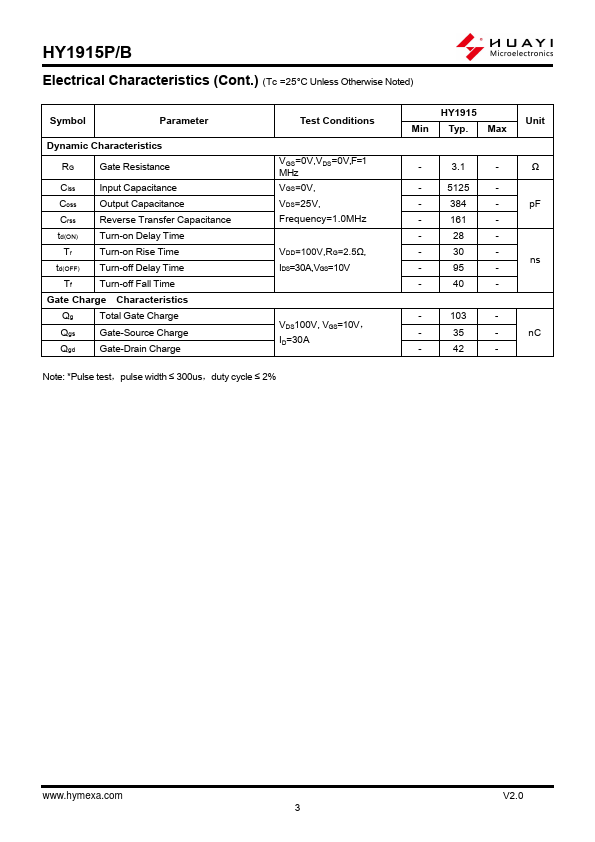

HY1915B Datasheet Preview Page 2 HY1915B Datasheet Preview Page 3

Datasheet Details

Part number:

HY1915B, HY1915P

Manufacturer:

HUAYI

File Size:

1.65 MB

Description:

N-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: HY1915B, HY1915P.
Please refer to the document for exact specifications by model.
