| Part number | HYG023N04LQ1B |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.27 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |

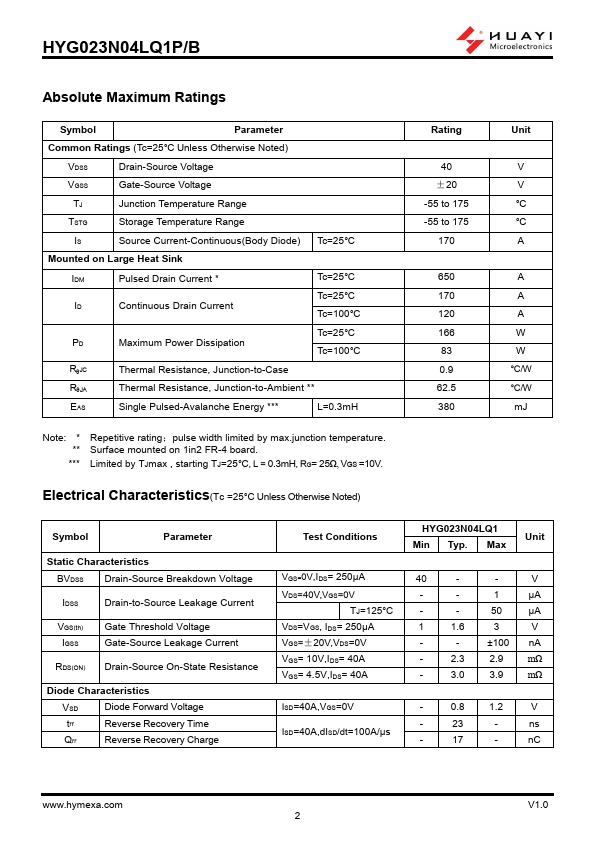

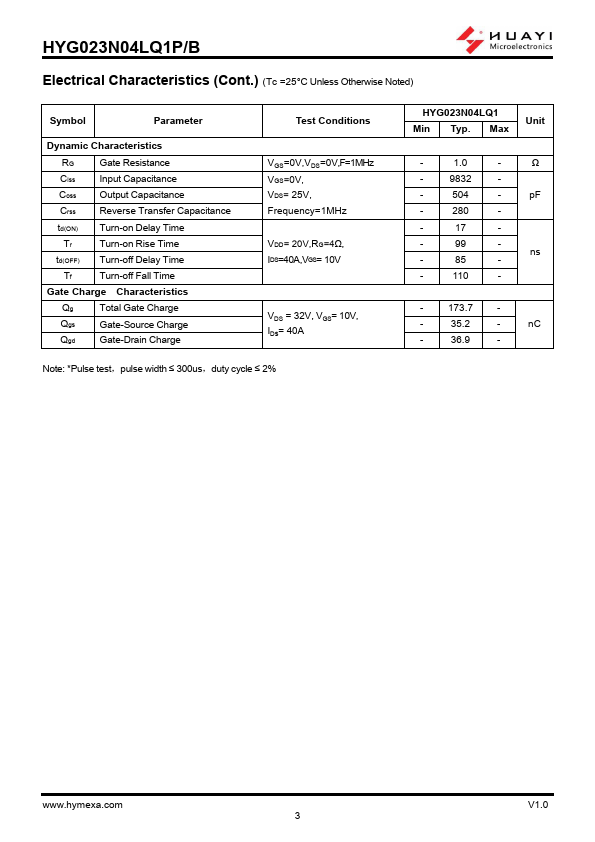

 HYG023N04LQ1B Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: HYG023N04LQ1B, HYG023N04LQ1P. Please refer to the document for exact specifications by model. |
|
|
TO-220FB-3L TO-263-2L N-Channel MOSFET Ordering and Marking Information P G023N04 XYMXXXXXX B G023N04 XYMXXXXXX Package Code P :TO-220FB-3L Date Code XYMXXXXXX B : TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate TermiNation finish;which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI d
