| Part number | HYG050N13NS1B |
|---|---|
| Manufacturer | HUAYI |
| File Size | 1.37 MB |
| Description | N-Channel Enhancement Mode MOSFET |
| Datasheet |

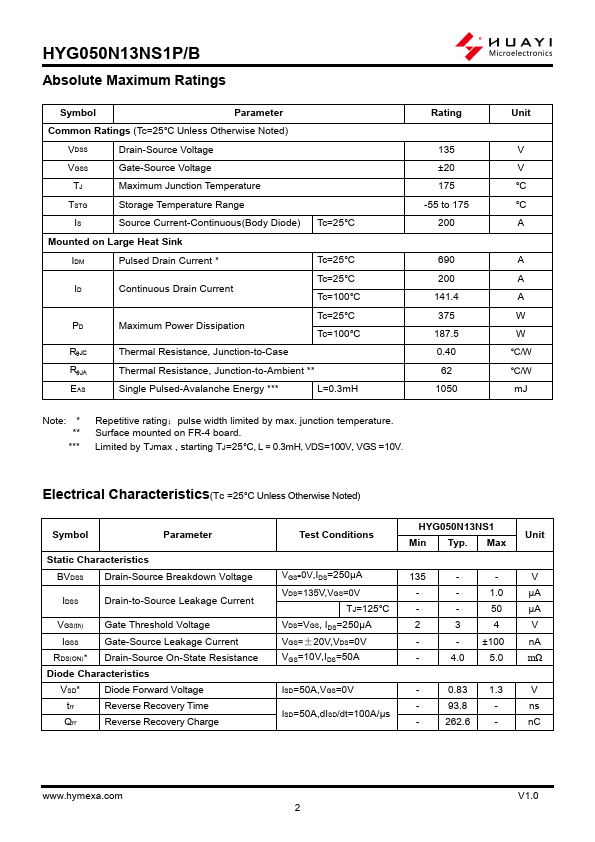

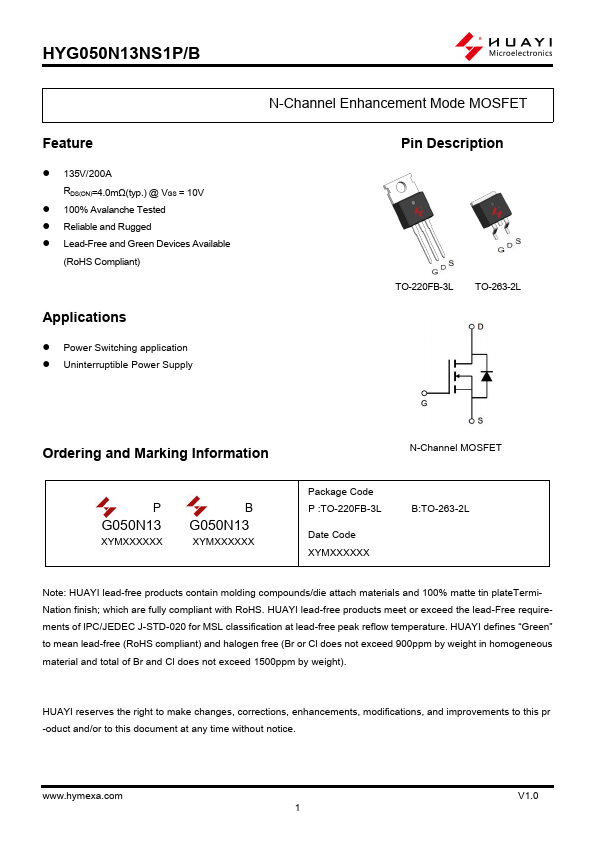

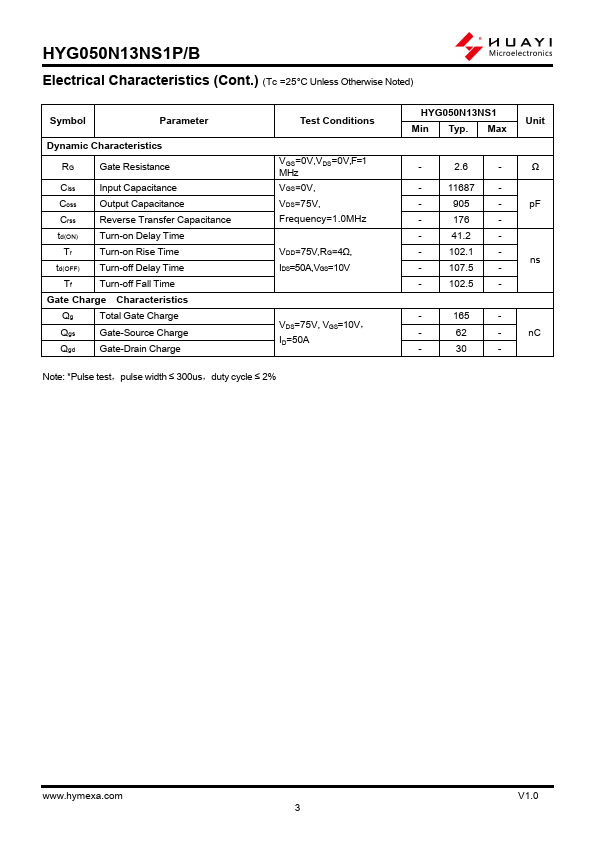

 HYG050N13NS1B Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: HYG050N13NS1B, HYG050N13NS1P. Please refer to the document for exact specifications by model. |
|
|
TO-220FB-3L TO-263-2L Ordering and Marking Information P G050N13 XYMXXXXXX B G050N13 XYMXXXXXX N-Channel MOSFET Package Code P :TO-220FB-3L Date Code XYMXXXXXX B:TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; which are fully compliant with RoHS.HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature.HUAYI defin
