HYG3208NA3B, HYG3208NA3P N-Channel Enhancement Mode MOSFET

HUAYI

Description

HYG3208NA3P/B .
TO-220FB-3L TO-263-2L Applications. Switching application. Power management for inverter system N-Channel MOSFET Ordering and Marking I.

📥 Download Datasheet

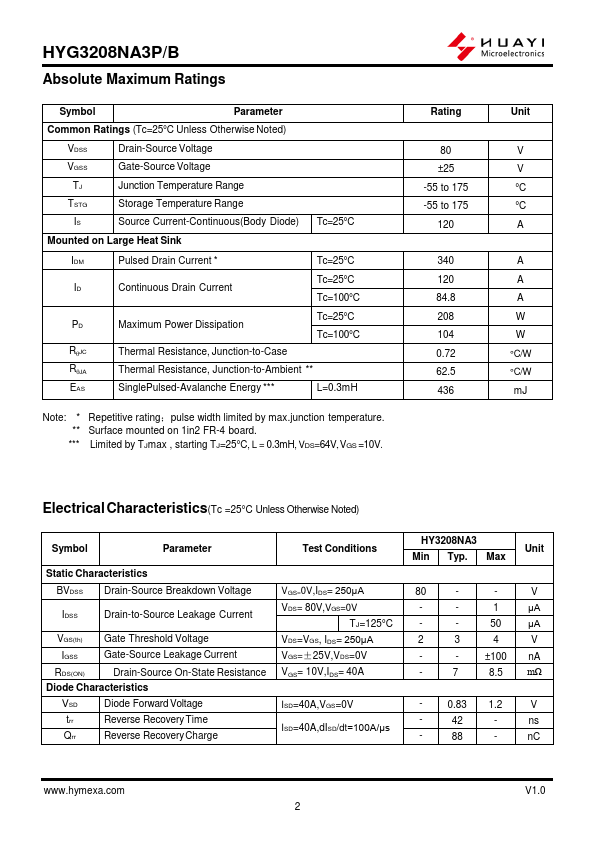

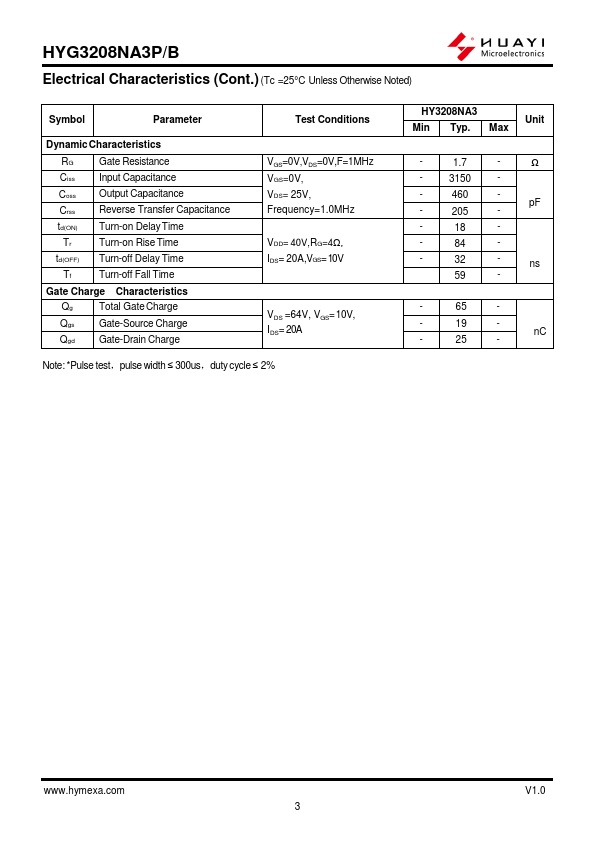

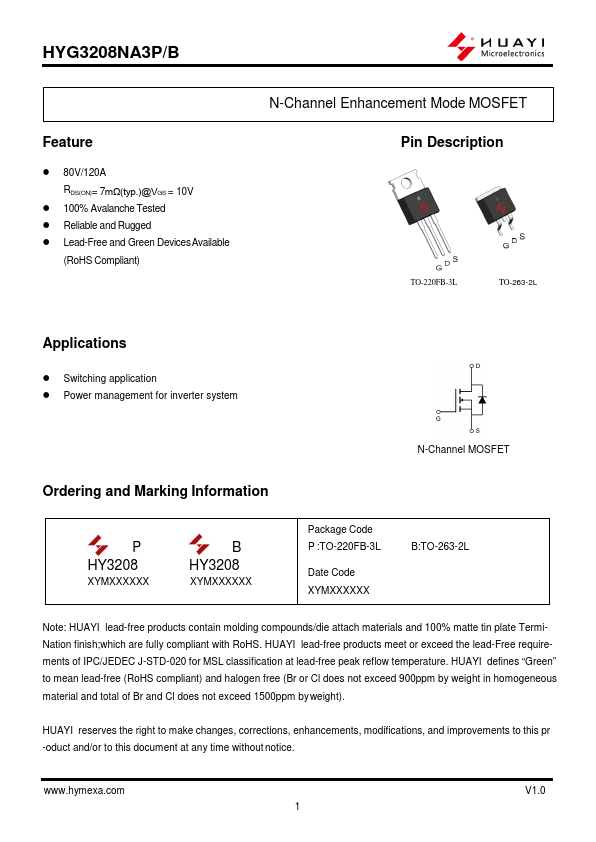

HYG3208NA3B Datasheet Preview — This datasheet PDF includes multiple part numbers: HYG3208NA3B, HYG3208NA3P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HYG3208NA3B, HYG3208NA3P
Manufacturer: HUAYI
File Size: 476.47 KB
Datasheet: HYG3208NA3P-HUAYI.pdf
Description: N-Channel Enhancement Mode MOSFET
Note: This datasheet PDF includes multiple part numbers: HYG3208NA3B, HYG3208NA3P.
Please refer to the document for exact specifications by model.

Applications

* Switching application
* Power management for inverter system N-Channel MOSFET Ordering and Marking Information P HY3208 XYMXXXXXX B HY3208 XYMXXXXXX Package Code P :TO-220FB-3L Date Code XYMXXXXXX B:TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materi
