HJ1609 Datasheet - Hi-Sincerity Mocroelectronics

NPN EPITAXIAL PLANAR TRANSISTOR

HJ1609 General Description

* Low frequency high voltage amplifier. * Complementary pair with HJ1109. Absolute Maximum Ratings (Ta=25°C) * Maximum Temperatures Storage Temperature -55 ~ +150 °C Junction Temperature +150 °C * Maximum Power Dissipation Total Power Dissipation (Tc=25°C) 1.25 W .

HJ1609 Datasheet (31.73 KB)

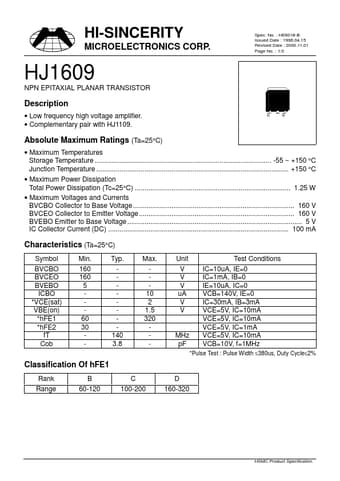

HJ1609 Datasheet Preview — Preview of HJ1609 PDF

Datasheet Details

Part number:

HJ1609

Manufacturer:

Hi-Sincerity Mocroelectronics

File Size:

31.73 KB

Description:

Npn epitaxial planar transistor.
HI-SINCERITY MICROELECTRONICS CORP. Spec. No. : HE6018-B Issued Date : 1996.04.15 Revised Date : 2000.11.01 Page No. : 1/3 HJ1609 NPN EPITAXIAL PLAN.
