SFD3015T - 150A 30V N-CHANNEL MOSFET

HiSemicon

📥 Download Datasheet

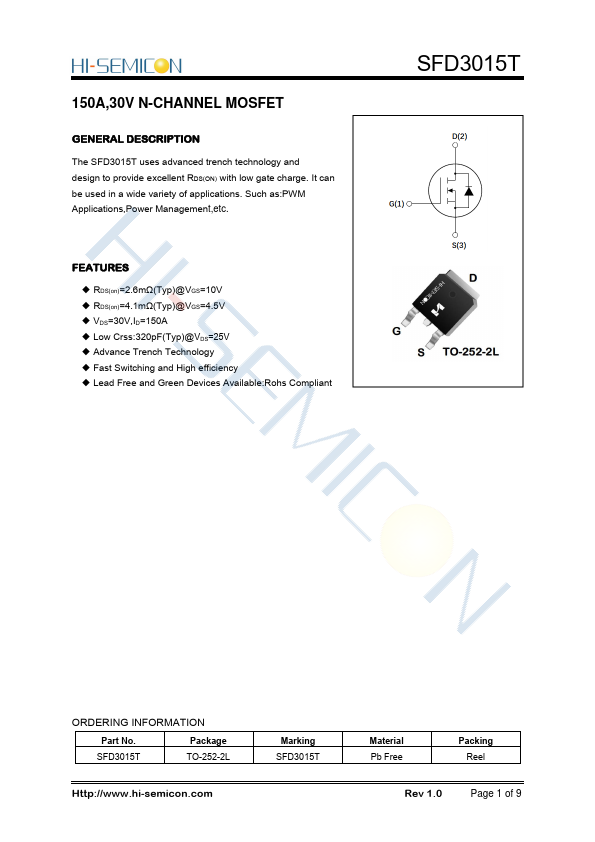

SFD3015T Datasheet Preview — Preview of SFD3015T PDF

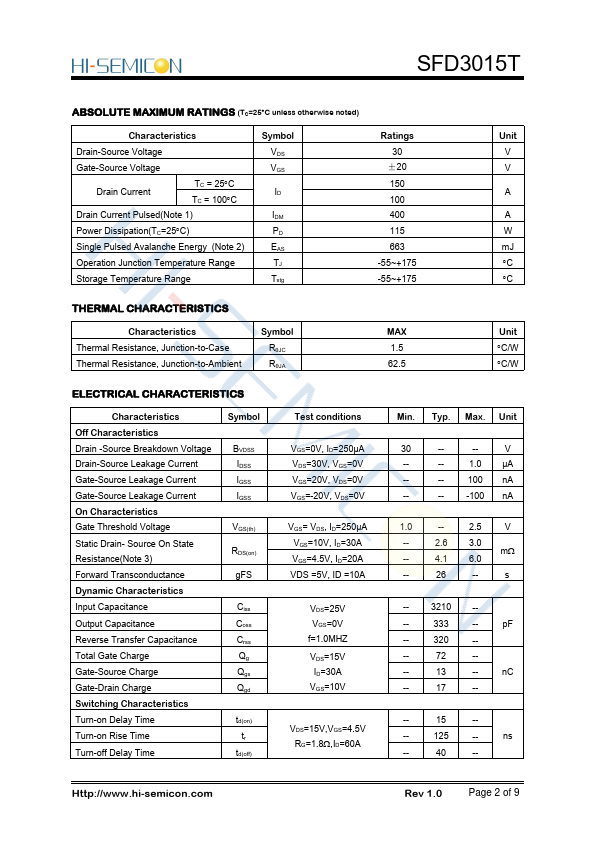

datasheet Preview Page 2

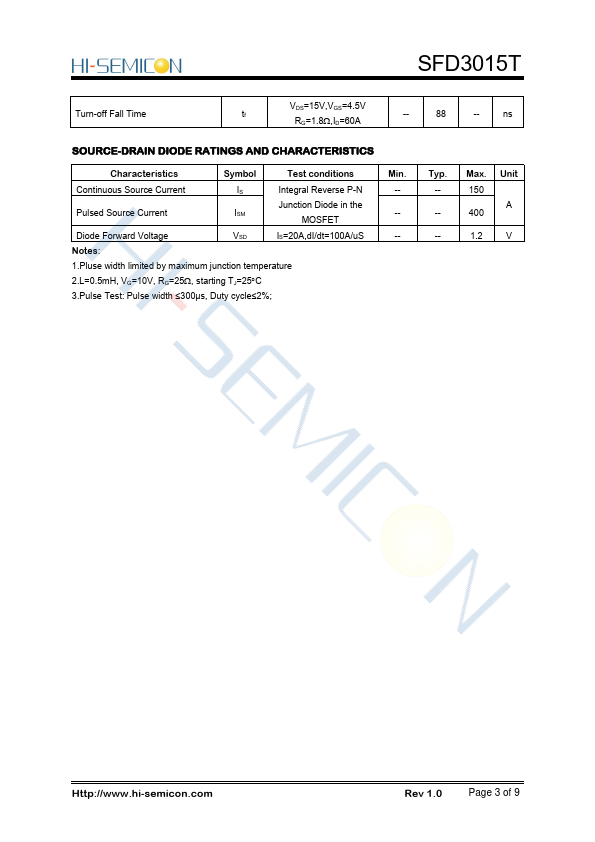

datasheet Preview Page 3

Datasheet Details

Part number	SFD3015T
Manufacturer	HiSemicon
File Size	1.33 MB
Description	150A 30V N-CHANNEL MOSFET
Datasheet	SFD3015T-HiSemicon.pdf

SFD3015T Product details

Description

The SFD3015T uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

RDS(on)=2.6mΩ(Typ)@VGS=10V.
RDS(on)=4.1mΩ(Typ)@VGS=4.5V.
VDS=30V,ID=150A.
Low Crss:320pF(Typ)@VDS=25V.
Advance Trench Technology.
Fast Switching and High efficiency.
Lead Free and Green Devices Available:Rohs Compliant SFD3015T.
