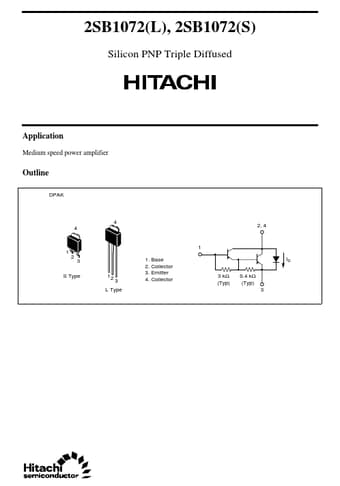

2SB1072(L), 2SB1072(S)
Silicon PNP Triple Diffused
Application
Medium speed power amplifier
Outline
DPAK
4 4 1 2 3 12 1. Base 2. Collector 3. Emitter 4. Collector
2, 4
1
ID 3 kΩ (Typ) 0.4 kΩ (Typ) 3
S Type
3
L Type
2SB1072(L), 2SB1072(S)
Absolute Maximum Ratings (Ta = 25°C)
Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current C to E diode forward current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C Symbol VCBO VCEO VEBO IC ID*
1
Rating –100 –80 –7 –4 4 –8 20 150 –55 to +150
Unit V V V A A A W °C °C
I C(peak) PC * Tj Tstg
1
Electrical Characteristics (Ta = 25°C)
Item Symbol Min –80 –7 — — 1000 — — — — — — — — Typ — — — — — — — — — — 0.5 1.5 1.
