2SC2612 Datasheet - Hitachi Semiconductor

2SC2612 - Silicon NPN Transistor

2SC2612 Silicon NPN Triple Diffused Application High voltage, high speed and high power switching Outline TO-220AB 1 2 3 1. Base 2. Collector (Flange) 3. Emitter Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Base current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC I C(peak) IB PC Tj Tstg 1 R.

2SC2612_HitachiSemiconductor.pdf

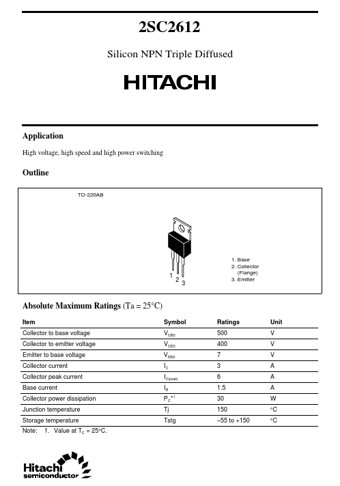

2SC2612 Datasheet Preview — Preview of 2SC2612 PDF

Datasheet Details

Part number:

2SC2612

Manufacturer:

Hitachi Semiconductor

File Size:

39.66 KB

Description:

Silicon npn transistor.
