2SD1366 Datasheet - Hitachi Semiconductor

2SD1366 Silicon NPN Transistor

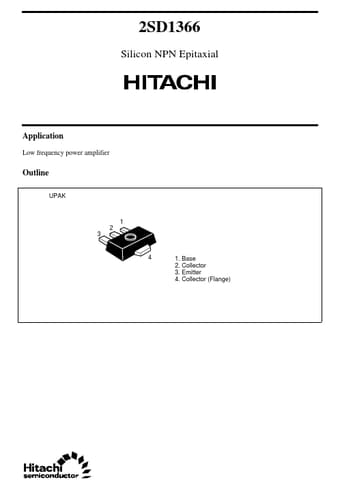

2SD1366 Silicon NPN Epitaxial Application Low frequency power amplifier Outline UPAK 1 3 2 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 2SD1366 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg 2 1 Ratings 25 20 5 1 1.5 1 150 55 to +150.
