2SD1366A Silicon NPN Transistor

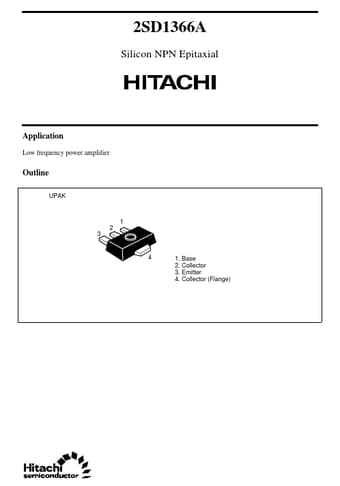

2SD1366A Silicon NPN Epitaxial Application Low frequency power amplifier Outline UPAK 1 3 2 4 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 2SD1366A Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg 2 1 Ratings 30 25 5 1 1.5 1 150 55 to +1.
