2SD1922 Datasheet - Hitachi Semiconductor

2SD1922 Silicon NPN Transistor

2SD1922 Silicon NPN Epitaxial Application Low frequency power amplifier Outline TO-92MOD 2 3 ID 1. Emitter 2. Collector 3. Base 1 3 2 1 2SD1922 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current E to C diode forward current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC ic (peak) ID PC Tj Tstg Ratings 25 25 6 0.8 1.5 0.8 0.9 150 <.

2SD1922_HitachiSemiconductor.pdf

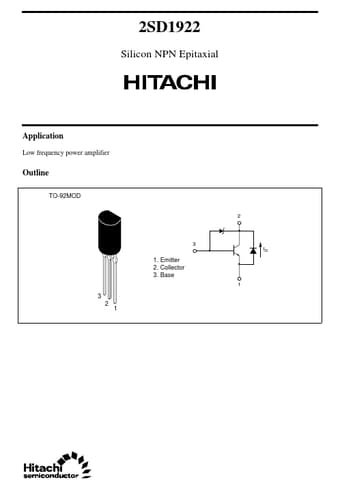

Preview of 2SD1922 PDF
2SD1922 Datasheet Preview Page 2 2SD1922 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1922

Manufacturer:

Hitachi Semiconductor

File Size:

33.94 KB

Description:

Silicon npn transistor.
