2SD1978 Datasheet - Hitachi Semiconductor

2SD1978 Silicon NPN Transistor

2SD1978 Silicon NPN Epitaxial, Darlington Application Low frequency power amplifier Complementary pair with 2SB1387 Outline TO-92MOD 2 3 ID 2 kΩ (Typ) 0.5 kΩ (Typ) 1 1. Emitter 2. Collector 3. Base 3 2 1 2SD1978 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature E to C diode forward current Sy.

2SD1978_HitachiSemiconductor.pdf

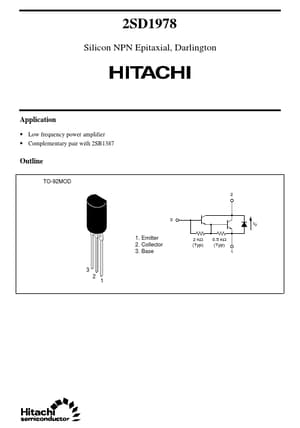

Preview of 2SD1978 PDF
2SD1978 Datasheet Preview Page 2 2SD1978 Datasheet Preview Page 3

Datasheet Details

Part number:

2SD1978

Manufacturer:

Hitachi Semiconductor

File Size:

32.55 KB

Description:

Silicon npn transistor.
