2SD2485

Silicon NPN Epitaxial Transistor

2SD2485 Features

* Low saturation voltage VCE(sat) = 0.1 V typ. (at IC = 1 A, IB = 50 mA)

* Large current capacitance IC = 2 A 1. Emitter 2. Collector 3. Base 3 2 1 Table 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Col

2SD2485 Datasheet (55.49 KB)

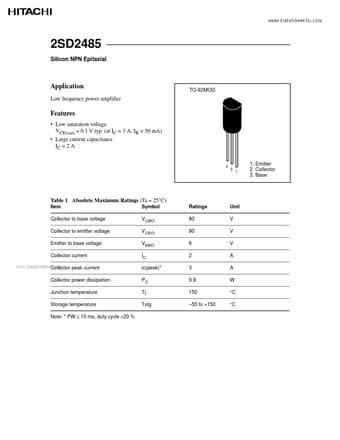

Preview of 2SD2485 PDF

Datasheet Details

Part number:

2SD2485

Manufacturer:

Hitachi Semiconductor

File Size:

55.49 KB

Description:

Silicon npn epitaxial transistor.
