2SK1863 - Silicon N-Channel MOSFET

2SK1863 Description

2SK1862, 2SK1863 Silicon N-Channel MOS FET Application High speed power switching .

2SK1863 Features

* Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for Switching regulator Outline TO-220FM D G 1 2 3 1. Gate 2. Drain 3. Source S 2SK1862, 2SK1863 Absolute Maximum Ratings (Ta = 25°C) Item Drain to sourc

📥 Download Datasheet

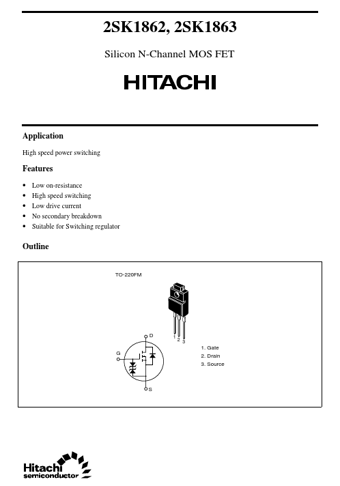

Preview of 2SK1863 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK1863
Manufacturer
Hitachi Semiconductor
File Size
34.10 KB
Datasheet
2SK1863_HitachiSemiconductor.pdf
Description
Silicon N-Channel MOSFET
