2SK1869 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

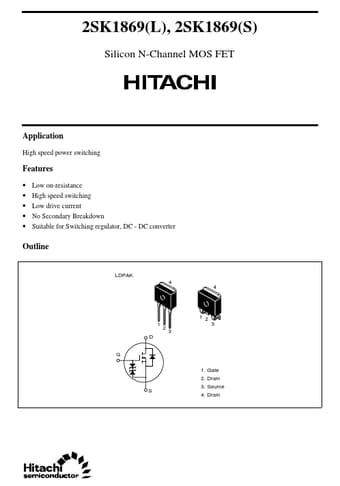

2SK1869 Silicon N-Channel MOSFET by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – 2SK1869

Datasheet Details

Part number	2SK1869
Manufacturer	Hitachi Semiconductor
File Size	28.82 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK1869 Datasheet
Additional preview pages of the 2SK1869 datasheet.

Product details

Features

Low on-resistance High speed switching Low drive current No Secondary Breakdown Suitable for Switching regulator, DC - DC converter Outline LDPAK 4 4 1 2 1 D G 2 3 3 S 1. Gate 2. Drain 3. Source 4. Drain 2SK1869(L), 2SK1869(S) Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temp.
