HB56SW3272ESK-6, 256MB Buffered EDO DRAM DIMM 32-Mword x 72-bit/ 4k Refresh/ 2 Bank Module(36 pcs of 16M x 4 components)

HB56SW3272ESK-5/6 256MB Buffered EDO DRAM DIMM 32-Mword × 72-bit, 4k Refresh, 2 Bank Module (36 pcs of 16M × 4 components) ADE-203-872B (Z) Rev.1.0 .
The HB56SW3272ESK belong to 8-byte DIMM (Dual in-line Memory Module) family , and have been developed an optimized main memory solution for 4 and 8-by.

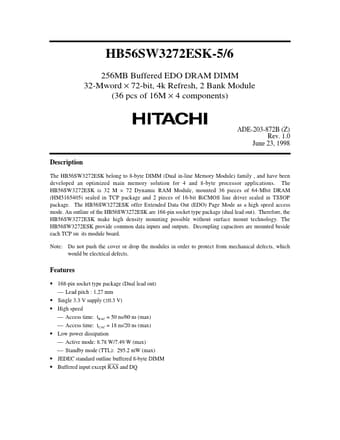

datasheet Preview Page 1 from Datasheet4u.com

HB56SW3272ESK-6_HitachiSemiconductor.pdf

HB56SW3272ESK-6 Datasheet Preview — Preview of HB56SW3272ESK-6 PDF

Datasheet Details

Part number:

HB56SW3272ESK-6

Manufacturer:

Hitachi Semiconductor

File Size:

338.46 KB

Description:

256MB Buffered EDO DRAM DIMM 32-Mword x 72-bit/ 4k Refresh/ 2 Bank Module(36 pcs of 16M x 4 components)

Features

* 168-pin socket type package (Dual lead out)  Lead pitch : 1.27 mm
* Single 3.3 V supply (±0.3 V)
* High speed  Access time: tRAC = 50 ns/60 ns (max)  Access time: tCAC = 18 ns/20 ns (max)
* Low power dissipation  Active mode: 8.78 W/7.49 W (max)  Standby mode (

Applications

* The HB56SW3272ESK is 32 M × 72 Dynamic RAM Module, mounted 36 pieces of 64-Mbit DRAM (HM5165405) sealed in TCP package and 2 pieces of 16-bit BiCMOS line driver sealed in TSSOP package. The HB56SW3272ESK offer Extended Data Out (EDO) Page Mode as a high speed access mode. An outline of the HB56SW32
