HD151TS301RP - Clock Generator

Datasheet Summary

Description

The HD151TS301RP is a high-performance clock generator.

It is specifically designed for printer.

Features

  • Supports 20 MHz to 50 MHz operation. (Designed for 24 MHz and 48 MHz).
  • 1 copy of clock out with spread spectrum modulation @3.3 V.
  • 1 copy of reference clock @3.3 V.
  • Programmable spread spectrum modulation (.
  • 0.5%,.
  • 1.0%,.
  • 2.0% and.
  • 3.0% down spread modulation. ).
  • SOP-8pin Key Specifications.
  • Supply voltages : VDD = 3.3 V±0.165 V.
  • Ta = 0 to 70°C operating range.
  • Clock output duty cycle = 50±5%.

📥 Download Datasheet

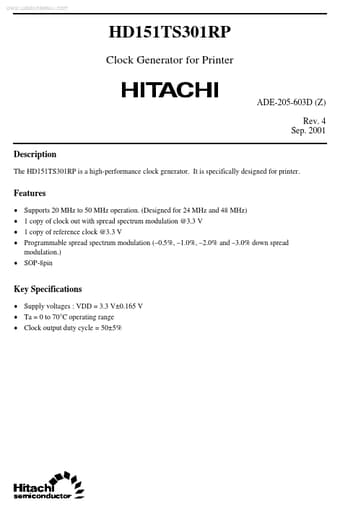

Datasheet preview – HD151TS301RP

Datasheet Details

Part number HD151TS301RP
Manufacturer Hitachi Semiconductor
File Size 82.95 KB
Description Clock Generator
Datasheet download datasheet HD151TS301RP Datasheet
Additional preview pages of the HD151TS301RP datasheet.

📁 Similar Datasheet

  • HD151TS302ARP - Spread Spectrum Clock (Renesas Technology)
  • HD151TS304ARP - Spread Spectrum Clock (Renesas Technology)
  • HD151TS305RP - Spread Spectrum Clock (Renesas Technology)
  • HD151005 - Octal Inverter Buffers/Drivers (Hitachi)
  • HD151BF854 - 2.5 V PLL Clock Buffer for DDR Application (Renesas Technology)
  • HD1520FX - HIGH VOLTAGE NPN POWER TRANSISTOR (STMicroelectronics)
  • HD153035F - 56-Mbps Data Channel Processor (Hitachi)
  • HD1530FX - High Voltage NPN Power Transistor (ST Microelectronics)
  • HD1530JL - High Voltage NPN Power Transistor (ST Microelectronics)
  • HD153108 - Color Palette (Hitachi)
Other Datasheets by Hitachi Semiconductor
  • HD151TS302RP - Spread Spectrum Clock
  • HD151011 - Dual BCD Programmable Counter with Synchronous Preset Enable
  • HD151012 - 8-bit Binary Programmable Counter with Synchronous Preset Enable
  • HD151015 - 9 bit Level Shifter/Transceiver With 3 State Outputs
  • HD153009 - 2-7 Code Encoder/Decoder
  • HD153011 - 2-7 RLL ENDEC BULLT-IN VFO
  • HD153013 - 2-7 Code Encoder/Decoder
  • HD155101BF - RF Single-chip Linear IC for GSM and EGSM Systems

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com HD151TS301RP Clock Generator for Printer ADE-205-603D (Z) Rev. 4 Sep. 2001 Description The HD151TS301RP is a high-performance clock generator. It is specifically designed for printer. Features • Supports 20 MHz to 50 MHz operation. (Designed for 24 MHz and 48 MHz) • 1 copy of clock out with spread spectrum modulation @3.3 V • 1 copy of reference clock @3.3 V • Programmable spread spectrum modulation (–0.5%, –1.0%, –2.0% and –3.0% down spread modulation.) • SOP-8pin Key Specifications • Supply voltages : VDD = 3.3 V±0.165 V • Ta = 0 to 70°C operating range • Clock output duty cycle = 50±5% HD151TS301RP Pin Arrangement SSCCLKOUT 1 8 SEL1 VDD 2 7 CLKOUT GND 3 6 SEL0 XIN 4 5 XOUT (Top view) SSC Function Table SEL1 :0 00 01 10 11 Spread Percentage –1.
