HD151005 - Octal Inverter Buffers/Drivers

Product Overview

Hitachi

Part number	HD151005
Manufacturer	Hitachi
File Size	50.80 KB
Description	Octal Inverter Buffers/Drivers
Datasheet	HD151005 Datasheet
Additional preview pages of the HD151005 datasheet.

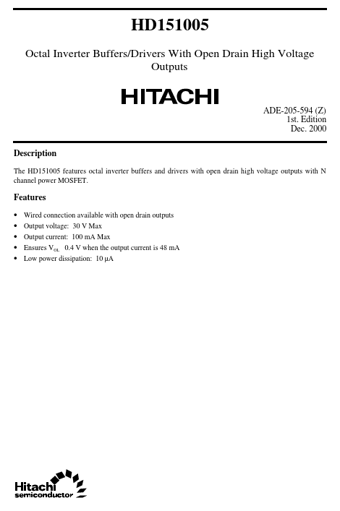

The HD151005

octal inverter buffers and drivers with open drain high voltage outputs with N channel power MOSFET. Features.
Wired connection available with open drain outputs Output voltage: 30 V Max Output current: 100 mA Max Ensures VOL 0.4 V when the output current is 48 mA Low power dissipation: 10 µA HD151005 Pin Arrangement OEA 1 A1 2 A2 3 A3 4 A4 5 B1 6 B2 7 B3 8 B4 9 OEB 10 20 VCC 19 YA1 18 YA2 17 YA3 16 YA4 15 YB1 14 YB2 13 YB3 12 YB4 11 GND (Top.
