HD151TS302ARP - Spread Spectrum Clock

Datasheet Summary

Description

The HD151TS302A is a high-performance Spread Spectrum Clock modulator.

It is suitable for low EMI solution.

Features

  • Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz) 1 copy of clock out with spread spectrum modulation @3.3 V 1 copy of reference clock @3.3 V Programmable spread spectrum modulation (.
  • 0.5%,.
  • 1.0%,.
  • 3.0% down spread modulation and spread spectrum disable mode. ).
  • SOP.
  • 8pin.
  • Pin to pin compatible with HD151TS302RP Key Specifications.

📥 Download Datasheet

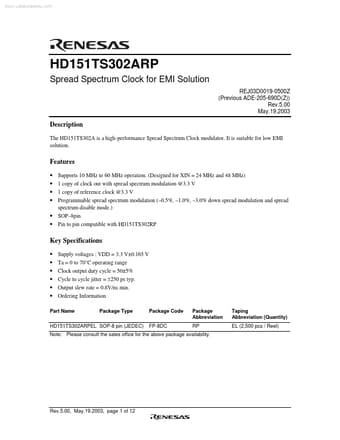

Datasheet preview – HD151TS302ARP

Datasheet Details

Part number HD151TS302ARP
Manufacturer Renesas Technology
File Size 102.85 KB
Description Spread Spectrum Clock
Datasheet download datasheet HD151TS302ARP Datasheet
Additional preview pages of the HD151TS302ARP datasheet.

📁 Similar Datasheet

  • HD151TS302RP - Spread Spectrum Clock (Hitachi Semiconductor)
  • HD151TS301RP - Clock Generator (Hitachi Semiconductor)
  • HD151005 - Octal Inverter Buffers/Drivers (Hitachi)
  • HD151011 - Dual BCD Programmable Counter with Synchronous Preset Enable (Hitachi Semiconductor)
  • HD151012 - 8-bit Binary Programmable Counter with Synchronous Preset Enable (Hitachi Semiconductor)
  • HD151015 - 9 bit Level Shifter/Transceiver With 3 State Outputs (Hitachi Semiconductor)
  • HD1520FX - HIGH VOLTAGE NPN POWER TRANSISTOR (STMicroelectronics)
  • HD153009 - 2-7 Code Encoder/Decoder (Hitachi Semiconductor)
  • HD153011 - 2-7 RLL ENDEC BULLT-IN VFO (Hitachi Semiconductor)
  • HD153013 - 2-7 Code Encoder/Decoder (Hitachi Semiconductor)
Other Datasheets by Renesas Technology

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com HD151TS302ARP Spread Spectrum Clock for EMI Solution REJ03D0019-0500Z (Previous ADE-205-690D(Z)) Rev.5.00 May.19.2003 Description The HD151TS302A is a high-performance Spread Spectrum Clock modulator. It is suitable for low EMI solution. Features • • • • Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz) 1 copy of clock out with spread spectrum modulation @3.3 V 1 copy of reference clock @3.3 V Programmable spread spectrum modulation (–0.5%, –1.0%, –3.0% down spread modulation and spread spectrum disable mode.) • SOP–8pin • Pin to pin compatible with HD151TS302RP Key Specifications • • • • • • Supply voltages : VDD = 3.3 V±0.165 V Ta = 0 to 70°C operating range Clock output duty cycle = 50±5% Cycle to cycle jitter = ±250 ps typ.
