HD151TS304ARP Datasheet PDF - Renesas Technology Spread Spectrum Clock Specs

HD151TS304ARP - Spread Spectrum Clock

Datasheet Summary

Description

The HD151TS304A is a high-performance Spread Spectrum Clock modulator.

It is suitable for low EMI solution.

Features

Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz) 1 copy of clock out with spread spectrum modulation @3.3 V 1 copy of reference clock @3.3 V Programmable spread spectrum modulation (±0.25%, ±0.5%, ±1.5% central spread modulation and spread spectrum disable mode. ).
SOP.
8pin.
Pin to pin compatible with HD151TS304RP.
Key Specifications.
Supply volta.

Datasheet Details

Part number	HD151TS304ARP
Manufacturer	Renesas Technology
File Size	101.43 KB
Description	Spread Spectrum Clock
Datasheet	HD151TS304ARP Datasheet
Additional preview pages of the HD151TS304ARP datasheet.

📁 Similar Datasheet

HD151TS301RP - Clock Generator (Hitachi Semiconductor)

HD151TS302RP - Spread Spectrum Clock (Hitachi Semiconductor)

HD151005 - Octal Inverter Buffers/Drivers (Hitachi)

HD151011 - Dual BCD Programmable Counter with Synchronous Preset Enable (Hitachi Semiconductor)

HD151012 - 8-bit Binary Programmable Counter with Synchronous Preset Enable (Hitachi Semiconductor)

HD151015 - 9 bit Level Shifter/Transceiver With 3 State Outputs (Hitachi Semiconductor)

HD1520FX - HIGH VOLTAGE NPN POWER TRANSISTOR (STMicroelectronics)

HD153009 - 2-7 Code Encoder/Decoder (Hitachi Semiconductor)

HD153011 - 2-7 RLL ENDEC BULLT-IN VFO (Hitachi Semiconductor)

HD153013 - 2-7 Code Encoder/Decoder (Hitachi Semiconductor)

Full PDF Text Transcription

Click to expand full text

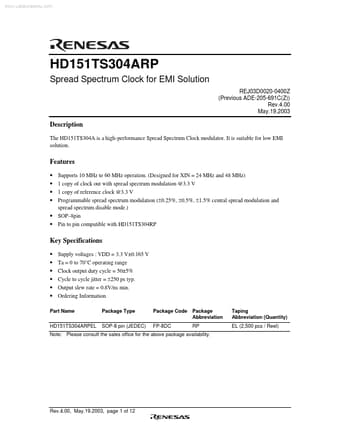

www.DataSheet4U.com HD151TS304ARP Spread Spectrum Clock for EMI Solution REJ03D0020-0400Z (Previous ADE-205-691C(Z)) Rev.4.00 May.19.2003 Description The HD151TS304A is a high-performance Spread Spectrum Clock modulator. It is suitable for low EMI solution. Features Supports 10 MHz to 60 MHz operation. (Designed for XIN = 24 MHz and 48 MHz) 1 copy of clock out with spread spectrum modulation @3.3 V 1 copy of reference clock @3.3 V Programmable spread spectrum modulation (±0.25%, ±0.5%, ±1.5% central spread modulation and spread spectrum disable mode.) • SOP–8pin • Pin to pin compatible with HD151TS304RP • • • • Key Specifications • • • • • • Supply voltages : VDD = 3.3 V±0.165 V Ta = 0 to 70°C operating range Clock output duty cycle = 50±5% Cycle to cycle jitter = ±250 ps typ.
