HD151012

8-bit Binary Programmable Counter with Synchronous Preset Enable

HD151012 Features

* High speed operation tpd (CLK or CLK to Q) = 35 ns (typ)

* High output current Fanout of 10 LS TTL Loads

* Wide operating voltage VCC = 2 to 6 V

* Low supply current (Ta = 25°C) ICC (Static) = 4 µA (max) HD151012 Function Table Control Inputs CLR H X L H PR H X H L

HD151012 General Description

The HD151012 has 8-bit binary down counter and D-type Flip Flop. The counter can set up to max 256 counts and synchronous preset (SPE) input can preset the data. When the count value is 0, the next clock pulse presets the data to invert the output. D-type Flip Flop takes the counter output as clock .

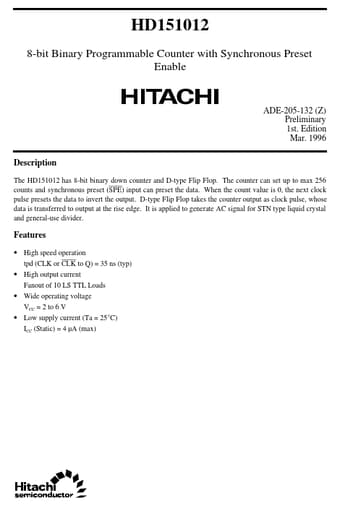

HD151012 Datasheet (78.26 KB)

Preview of HD151012 PDF

Datasheet Details

Part number:

HD151012

Manufacturer:

Hitachi Semiconductor

File Size:

78.26 KB

Description:

8-bit binary programmable counter with synchronous preset enable.
