HD151011

Dual BCD Programmable Counter with Synchronous Preset Enable

HD151011 Features

* High speed operation tpd (CLK or CLK to Q) = 35 ns (typ)

* High output current Fanout of 10 LS TTL Loads

* Wide operating voltage Vcc = 2 to 6 V

* Low supply current (Ta = 25°C) Icc (Static) = 4 µA (max) HD151011 Function Table Control Inputs CLR H X

HD151011 General Description

Down count at the rise edge of clock (CLK), Down count at the fall edge of clock ( CLK ) Jn data is preset at the rise of clock (CLK), the fall of clock (CLK ) Clock inputs (CLK, CLK ) is CMOS level Clock inputs (CLK, CLK ) is TTL level Initialize of Q = "L" Initialize of Q = "H" H: High level L: L.

HD151011 Datasheet (75.66 KB)

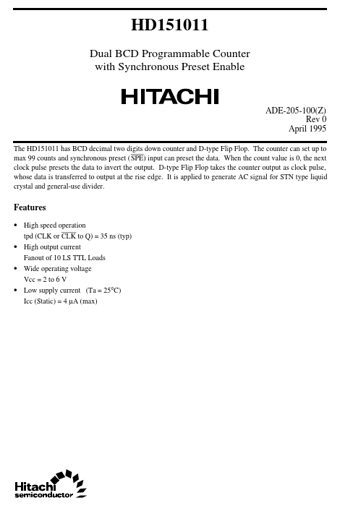

Preview of HD151011 PDF

Datasheet Details

Part number:

HD151011

Manufacturer:

Hitachi Semiconductor

File Size:

75.66 KB

Description:

Dual bcd programmable counter with synchronous preset enable.
HD151011 Dual BCD Programmable Counter with Synchronous Preset Enable ADE-205-100(Z) Rev 0 April 1995 The HD151011 has BCD decimal two digits down co.
