HD74ALVCH162260 Datasheet, Outputs, Hitachi Semiconductor

HD74ALVCH162260 Features

  • Outputs
  • VCC = 2.3 V to 3.6 V
  • Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
  • Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
  • High ou

PDF File Details

Part number:

HD74ALVCH162260

Manufacturer:

Hitachi Semiconductor

File Size:

61.79kb

Download:

📄 Datasheet

Description:

12-bit to 24-bit multiplexed d-type latches with 3-state outputs. The HD74ALVCH162260 is a 12-bit to 24-bit multiplexed D-type latch used in applications where two separate data paths must be multipl

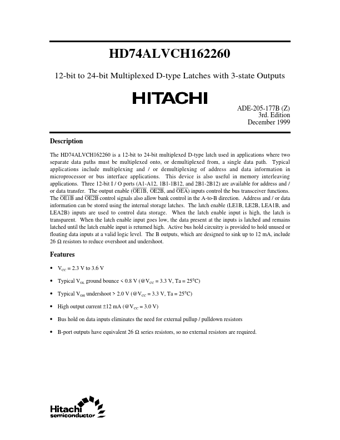

Datasheet Preview: HD74ALVCH162260 📥 Download PDF (61.79kb)
Page 2 of HD74ALVCH162260 Page 3 of HD74ALVCH162260

HD74ALVCH162260 Application

  • Applications where two separate data paths must be multiplexed onto, or demultiplexed from, a single data path. Typical applications include multipl
