HD74ALVCH162373 Datasheet - Hitachi Semiconductor

HD74ALVCH162373 16-bit Transparent D-type Latches with 3-state Outputs

The HD74ALVCH162373 is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. It can be used as two 8-bit latches or one 16-bit latch. When the latch enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken l.

HD74ALVCH162373 Features

* VCC = 2.3 V to 3.6 V

* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)

* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)

* High output current ±12 mA (@VCC = 3.0 V)

* Bus hold on data inputs eliminates the need for external pullup / pull

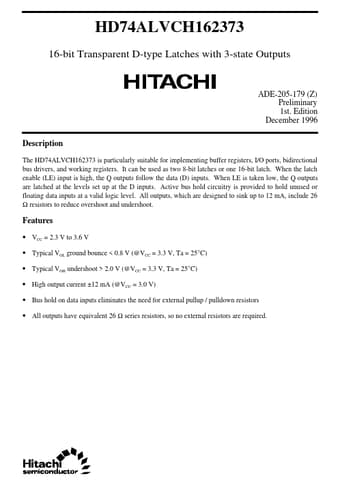

HD74ALVCH162373_HitachiSemiconductor.pdf
