HD74ALVCH16244 Datasheet, Outputs, Hitachi Semiconductor

HD74ALVCH16244 Features

  • Outputs
  • VCC = 2.3 V to 3.6 V
  • Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)
  • Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)
  • Bus hol

PDF File Details

Part number:

HD74ALVCH16244

Manufacturer:

Hitachi Semiconductor

File Size:

46.98kb

Download:

📄 Datasheet

Description:

16-bit buffers / drivers with 3-state outputs. The HD74ALVCH16244 is designed specifically to improve both the performance and density of three state memory address drivers, clock

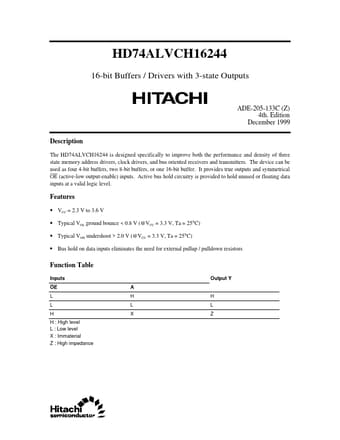

Datasheet Preview: HD74ALVCH16244 📥 Download PDF (46.98kb)
