HD74ALVCH162270

12-bit to 24-bit Registered Bus Exchanger with 3-state Outputs

HD74ALVCH162270 Features

* VCC = 2.3 V to 3.6 V

* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)

* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)

* High output current ±12 mA (@VCC = 3.0 V)

* Bus hold on data inputs eliminates the need for external pullup / pull

HD74ALVCH162270 General Description

The HD74ALVCH162270 is used in applications where data must be transferred from a narrow high speed bus to a wide lower frequency bus. The device provides synchronous data exchange between the two ports. Data is stored in the internal registers on the low to high transition of the clock (CLK) input .

HD74ALVCH162270 Datasheet (66.73 KB)

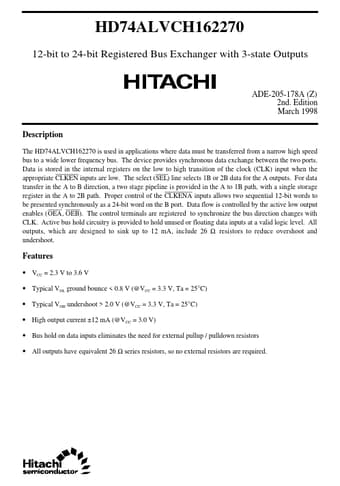

Preview of HD74ALVCH162270 PDF

Datasheet Details

Part number:

HD74ALVCH162270

Manufacturer:

Hitachi Semiconductor

File Size:

66.73 KB

Description:

12-bit to 24-bit registered bus exchanger with 3-state outputs.
