HD74ALVCH16830

1-bit to 2-bit Address Driver with 3-state Outputs

HD74ALVCH16830 Features

* VCC = 2.3 V to 3.6 V

* Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C)

* Typical VOH undershoot > 2.0 V (@VCC = 3.3 V, Ta = 25°C)

* High output current ±24 mA (@V CC = 3.0 V)

* Bus hold on data inputs eliminates the need for external pullup / pul

HD74ALVCH16830 General Description

This 1-bit to 2-bit address driver is designed for 2.3 V to 3.6 V V CC operation. To ensure the high impedance state during power up or power down, the output ebable (OE ) input should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current sinking ca.

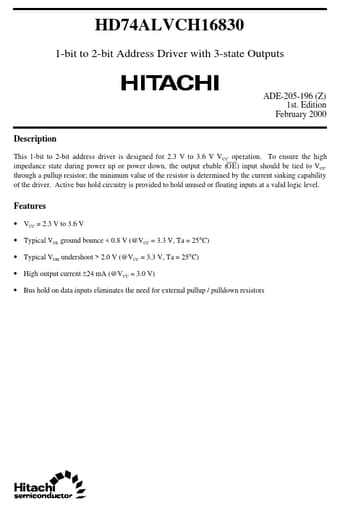

HD74ALVCH16830 Datasheet (52.55 KB)

Preview of HD74ALVCH16830 PDF

Datasheet Details

Part number:

HD74ALVCH16830

Manufacturer:

Hitachi Semiconductor

File Size:

52.55 KB

Description:

1-bit to 2-bit address driver with 3-state outputs.
