HD74HC125 Datasheet, Gates, Hitachi Semiconductor

HD74HC125 Features

  • Gates
  • High Speed Operation: tpd = 8 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V

PDF File Details

Part number:

HD74HC125

Manufacturer:

Hitachi Semiconductor

File Size:

49.78kb

Download:

📄 Datasheet

Description:

Quad. bus buffer gates. The HD74HC125, HD74HC126 require the 3-state control input C to be taken high to put the output into the high impedance condition, wh

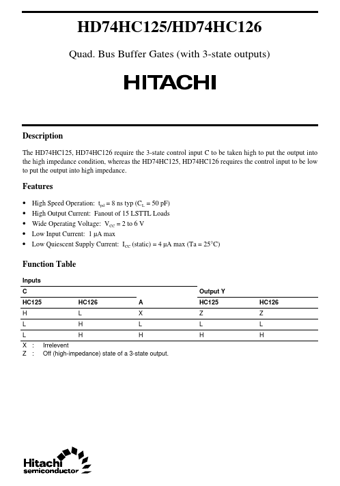

Datasheet Preview: HD74HC125 📥 Download PDF (49.78kb)
Page 2 of HD74HC125 Page 3 of HD74HC125
