HD74HC126 Datasheet - Hitachi Semiconductor

HD74HC126, Quad. Bus Buffer Gates

HD74HC125/HD74HC126 Quad.Bus Buffer Gates (with 3-state outputs) .
The HD74HC125, HD74HC126 require the 3-state control input C to be taken high to put the output into the high impedance condition, whereas the HD74HC1.

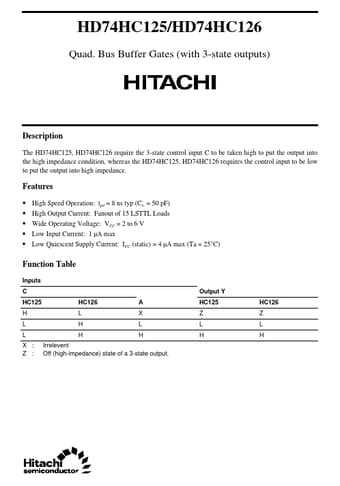

datasheet Preview Page 1 from Datasheet4u.com

HD74HC126_HitachiSemiconductor.pdf

HD74HC126 Datasheet Preview — Preview of HD74HC126 PDF

Datasheet Details

Part number:

HD74HC126

Manufacturer:

Hitachi Semiconductor

File Size:

49.78 KB

Description:

Quad. Bus Buffer Gates

Features

* High Speed Operation: tpd = 8 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) Function Table Input
