HD74HC10 - Triple 3-input NAND Gates

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

HD74HC10 Triple 3-input NAND Gates by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74HC10

Datasheet Details

Part number	HD74HC10
Manufacturer	Hitachi Semiconductor
File Size	39.74 KB
Description	Triple 3-input NAND Gates
Datasheet	HD74HC10 Datasheet

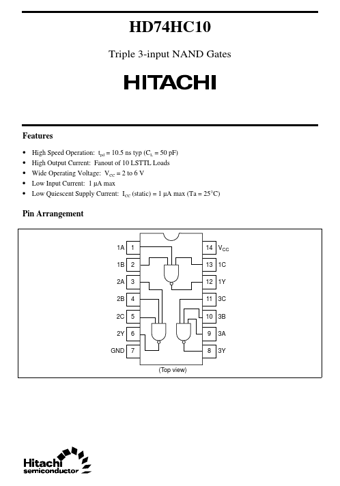

Additional preview pages of the HD74HC10 datasheet.

Product details

Features

High Speed Operation: tpd = 10.5 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C) Pin Arrangement 1A 1B 2A 2B 2C 2Y GND 1 2 3 4 5 6 7 (Top view) 14 VCC 13 1C 12 1Y 11 3C 10 3B 9 8 3A 3Y HD74HC10 DC Characteristics Ta = 25°C Item Input voltage Symbol VIH Ta =.
40 to +85°C Max.
