HD74HC126 Datasheet, Gates, Renesas

HD74HC126 Features

• Gates
• High Speed Operation: tpd = 8 ns typ (CL = 50 pF)
• High Output Current: Fanout of 15 LSTTL Loads
• Wide Operating Voltage: VCC = 2 to 6 V
• Low Input

PDF File Details

Part number:

HD74HC126

Manufacturer:

Renesas ↗

File Size:

116.13kb

Download:

📄 Datasheet

Description:

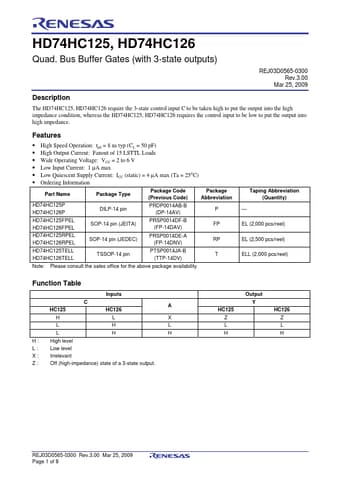

Quad. bus buffer gates. The HD74HC125, HD74HC126 require the 3-state control input C to be taken high to put the output into the high impedance condition, wh
