HD74HC123A

Dual Retriggerable Monostable Multivibrators

HD74HC123A Features

* both a negative, A, and a positive, B, transition triggered input, either of which can be used as an inhibit input. Also included is a clear input that when taken low resets the one shot. The HD74HC123A can be triggered on the positive transition of the clear while A is held low and B is held high.

HD74HC123A Datasheet (92.91 KB)

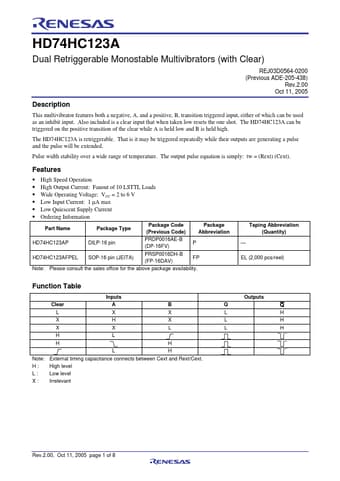

Preview of HD74HC123A PDF

Datasheet Details

Part number:

HD74HC123A

Manufacturer:

Renesas ↗

File Size:

92.91 KB

Description:

Dual retriggerable monostable multivibrators.
