HD74HC182 - Look-Ahead Carry Generator

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

HD74HC182 Look-Ahead Carry Generator by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HD74HC182

Datasheet Details

Part number	HD74HC182
Manufacturer	Hitachi Semiconductor
File Size	56.32 KB
Description	Look-Ahead Carry Generator
Datasheet	HD74HC182 Datasheet

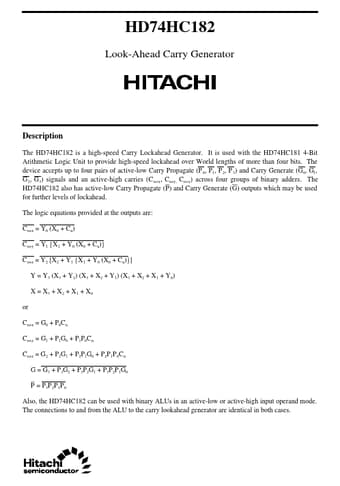

Additional preview pages of the HD74HC182 datasheet.

Product details

Description

The HD74HC182 is a high-speed Carry Lockahead Generator.

Features

High Speed Operation: tpd (Pn to P) = 11 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) Pin Designations Item G0, G1, G2, G3 P0, P1, P2, P3 Cn Cn+x, Cn+y, Cn+z G P VCC GND Pin No. 3, 1, 14, 5 4, 2, 15, 6 13 12, 11, 9 10 7 16 8 Functions Active-low carry generate inputs Active-low carry propagate.
