HD74LV4040A

12-stage Binary Counter

HD74LV4040A Features

* VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°

HD74LV4040A General Description

The HD74LV4040A is a 12 stage counter. This device is incremented on the falling edge (negative transition) of the input clock, and all its output is reset to a low level by applying a logical high on its reset input. Low-voltage and high-speed operation is suitable for the battery-powered products .

HD74LV4040A Datasheet (95.45 KB)

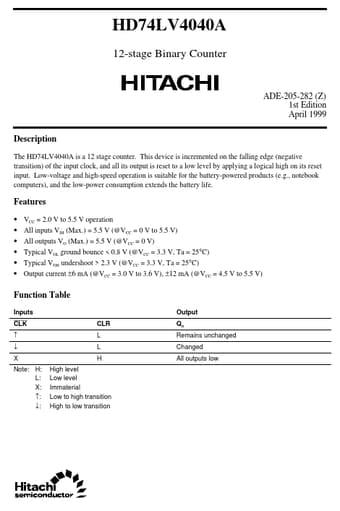

Preview of HD74LV4040A PDF

Datasheet Details

Part number:

HD74LV4040A

Manufacturer:

Hitachi Semiconductor

File Size:

95.45 KB

Description:

12-stage binary counter.
