HD74LV4051A - 8-channel Analog Multiplexer / Demultiplexer

Hitachi Semiconductor

📥 Download Datasheet

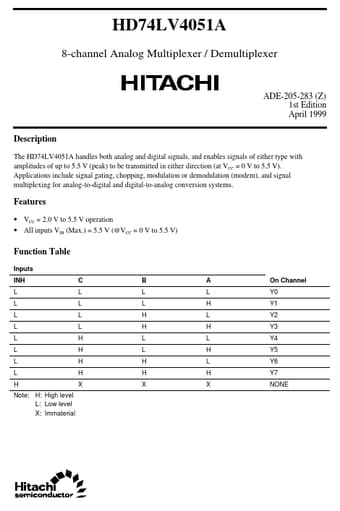

HD74LV4051A Datasheet Preview — Preview of HD74LV4051A PDF

Datasheet Details

Part number: HD74LV4051A
Manufacturer: Hitachi Semiconductor
File Size: 75.67 KB
Datasheet: HD74LV4051A_HitachiSemiconductor.pdf
Description: 8-channel Analog Multiplexer / Demultiplexer

HD74LV4051A Product details

Description

The HD74LV4051A handles both analog and digital signals, and enables signals of either type with amplitudes of up to 5.5 V (peak) to be transmitted in either direction (at VCC = 0 V to 5.5 V).

Features

VCC = 2.0 V to 5.5 V operation.
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) Function Table Inputs INH L L L L L L L L H Note: H: High level L: Low level X: Immaterial C L L L L H H H H X B L L H H L L H H X A L H L H L H L H X On Channel Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 NONE HD74LV4051A Pin Arrangement Y4 1 Y6 COM 2 3 16 VCC 15 Y2 14 Y1 13 Y0 12 Y3 11 A 10 B 9 C Y7 4 Y5 INH GND GND 5 6 7 8 (Top view) 2 HD74LV4051A Absolute Maximum Ratings Item Supply voltage range Input.
