HL6724MG - band AlGaInP laser diode

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

HL6724MG band AlGaInP laser diode by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – HL6724MG

Datasheet Details

Part number	HL6724MG
Manufacturer	Hitachi Semiconductor
File Size	24.37 KB
Description	band AlGaInP laser diode
Datasheet	HL6724MG Datasheet

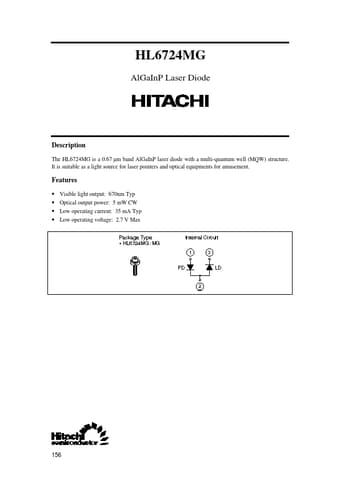

Additional preview pages of the HL6724MG datasheet.

Product details

Description

The HL6724MG is a 0.67 µm band AlGaInP laser diode with a multi-quantum well (MQW) structure.

Features

Visible light output: 670nm Typ Optical output power: 5 mW CW Low operating current: 35 mA Typ Low operating voltage: 2.7 V Max 156 HL6724MG Absolute Maximum Ratings (TC = 25°C) Item Optical output power Pulse optical output power LD reverse voltage PD reverse voltage Operating temperature Storage temperature Note: Symbol PO PO (pulse) VR (LD) VR (PD) Topr Tstg Rated Value 5 6.
2 30.
10 to +50.
40 to +85 1 Unit mW mW V V °C °C 1. Pu.
