HL6738MG

Visible High Power Laser Diode

HL6738MG Features

* High output power Visible light output Small package Low astigmatism : 35 mW (CW) : λp = 680 to 695 nm : φ 5.6 mm : 6 µm Typ (PO = 5 mW) Package Type

* HL6738MG: MG Internal Circuit 1 3 PD LD 2 HL6738MG Absolute Maximum Ratings (TC = 25°C) Item Opt

HL6738MG General Description

The HL6738MG is a 0.68 µm band AlGaInP laser diode (LD) with a multi-quantum well (MQW) structure. It is suitable as a light source for large capacity optical disc memories and various other types of optical equipment. Hermetic sealing of the small package (φ 5.6 mm) assures high reliability. Appli.

HL6738MG Datasheet (38.27 KB)

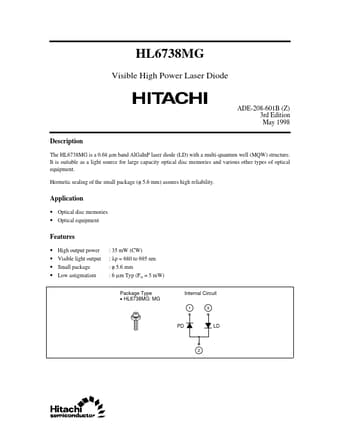

Preview of HL6738MG PDF

Datasheet Details

Part number:

HL6738MG

Manufacturer:

Hitachi

File Size:

38.27 KB

Description:

Visible high power laser diode.
