HSC119 - Silicon Epitaxial Planar Diode for High Speed Switching

Datasheet Summary

Features

  • Low capacitance. (C=2.0pF max).
  • Short reverse recovery time. (trr =3.0ns max).
  • Ultra small F lat P ackage (UFP) is suitable for surface mount design. Ordering Information Type No. HSC119 Laser Mark H1 Package Code UFP Outline Cathode mark Mark 1 H1 2 1. Cathode 2. Anode HSC119 Absolute Maximum Ratings (Ta = 25°C) Item Peak reverse voltage Reverse voltage Average forward current Peak rectified current Non-Repetitive peak forward surge current Junction temperature.

📥 Download Datasheet

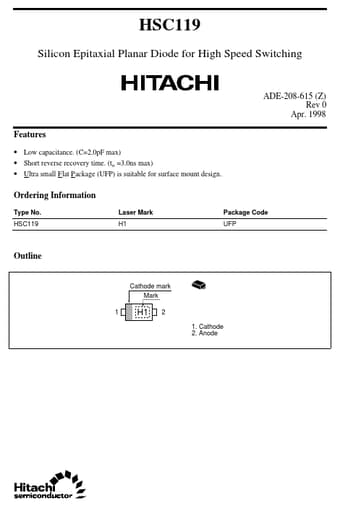

Datasheet preview – HSC119

Datasheet Details

Part number HSC119
Manufacturer Hitachi Semiconductor
File Size 26.74 KB
Description Silicon Epitaxial Planar Diode for High Speed Switching
Datasheet download datasheet HSC119 Datasheet
Additional preview pages of the HSC119 datasheet.

📁 Similar Datasheet

  • HSC100 - Aluminium Housed Power Resistors (TE)
  • HSC106D - Silicon Controlled Rectifier (SemiHow)
  • HSC106M - Silicon Controlled Rectifier (SemiHow)
  • HSC150 - Aluminium Housed Power Resistors (TE)
  • HSC1815 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC1959 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC1959SP - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC200 - Aluminium Housed Power Resistors (TE)
  • HSC2228Y - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC2240 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
Other Datasheets by Hitachi Semiconductor
  • HSC226 - Silicon Schottky Barrier Diode
  • HSC276 - Silicon Schottky Barrier Diode for Mixer
  • HSC276A - Silicon Schottky Barrier Diode for Mixer
  • HSC277 - Silicon Epitaxial Planar Diode for UHF/VHF tuner Band Switch
  • HSC278 - Silicon Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text
HSC119 Silicon Epitaxial Planar Diode for High Speed Switching ADE-208-615 (Z) Rev 0 Apr. 1998 Features • Low capacitance. (C=2.0pF max) • Short reverse recovery time. (trr =3.0ns max) • Ultra small F lat P ackage (UFP) is suitable for surface mount design. Ordering Information Type No. HSC119 Laser Mark H1 Package Code UFP Outline Cathode mark Mark 1 H1 2 1. Cathode 2. Anode HSC119 Absolute Maximum Ratings (Ta = 25°C) Item Peak reverse voltage Reverse voltage Average forward current Peak rectified current Non-Repetitive peak forward surge current Junction temperature Storage temperature Note Symbol VRM VR IO I FM I FSM Tj Tstg *1 Value 85 80 100 300 4 125 –55 to +125 Unit V V mA mA A °C °C 1. Within 1µs forward surge current.
