HSC226 - Silicon Schottky Barrier Diode

Datasheet Summary

Features

  • Low reverse current, Low capacitance.
  • Ultra small Flat Package (UFP) is suitable for surface mount design. Ordering Information Type No. HSC226 Laser Mark S4 Package Code UFP Outline Cathode mark Mark 1 S4 2 1. Cathode 2. Anode HSC226 Absolute Maximum Ratings (Ta = 25°C) Item Repetitive peak reverse voltage Non-Repetitive peak forward surge current Forward current Junction temperature Storage temperature Note: 10ms Sinewave 1pulse Symbol VRRM Value 25 200 50 125.

📥 Download Datasheet

Datasheet preview – HSC226

Datasheet Details

Part number HSC226
Manufacturer Hitachi Semiconductor
File Size 28.83 KB
Description Silicon Schottky Barrier Diode
Datasheet download datasheet HSC226 Datasheet
Additional preview pages of the HSC226 datasheet.

📁 Similar Datasheet

  • HSC226 - Silicon Schottky Barrier Diode (SEMTECH)
  • HSC226 - Silicon Schottky Barrier Diode (Kexin)
  • HSC226 - Silicon Schottky Barrier Diode (Renesas)
  • HSC2228Y - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC2240 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC200 - Aluminium Housed Power Resistors (TE)
  • HSC250 - Aluminium Housed Power Resistors (TE)
  • HSC2625 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC2682 - NPN EPITAXIAL PLANAR TRANSISTOR (Hi-Sincerity Mocroelectronics)
  • HSC100 - Aluminium Housed Power Resistors (TE)
Other Datasheets by Hitachi Semiconductor
  • HSC276 - Silicon Schottky Barrier Diode for Mixer
  • HSC276A - Silicon Schottky Barrier Diode for Mixer
  • HSC277 - Silicon Epitaxial Planar Diode for UHF/VHF tuner Band Switch
  • HSC278 - Silicon Schottky Barrier Diode
  • HSC119 - Silicon Epitaxial Planar Diode for High Speed Switching

Full PDF Text Transcription

Click to expand full text

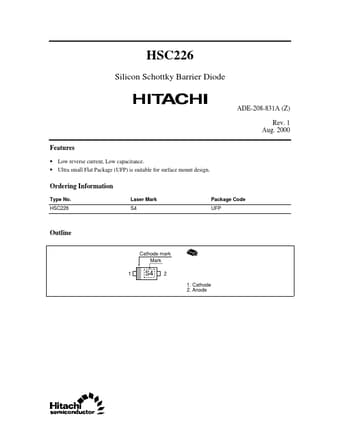

HSC226 Silicon Schottky Barrier Diode ADE-208-831A (Z) Rev. 1 Aug. 2000 Features • Low reverse current, Low capacitance. • Ultra small Flat Package (UFP) is suitable for surface mount design. Ordering Information Type No. HSC226 Laser Mark S4 Package Code UFP Outline Cathode mark Mark 1 S4 2 1. Cathode 2. Anode HSC226 Absolute Maximum Ratings (Ta = 25°C) Item Repetitive peak reverse voltage Non-Repetitive peak forward surge current Forward current Junction temperature Storage temperature Note: 10ms Sinewave 1pulse Symbol VRRM Value 25 200 50 125 −55 to +125 Unit V mA mA °C °C IFSM * IF Tj Tstg Electrical Characteristics (Ta = 25°C) Item Forward voltage Symbol VF1 VF2 Reverse current Capacitance IR C Min — — — — Typ — — — — Max 0.33 0.38 0.45 2.
