HSC276 - Silicon Schottky Barrier Diode for Mixer

HSC276 Description

HSC276 Silicon Schottky Barrier Diode for Mixer ADE-208-421A(Z) Rev 1 Dec.1998 .

HSC276 Features

* High forward current, Low capacitance.
* Ultra small Flat Package (UFP) is suitable for surface mount design. Ordering Information Type No. HSC276 Laser Mark C2 Package Code UFP Outline Cathode mark Mark 1 C2 2 1. Cathode 2. Anode HSC276 Absolute Maximum Ratings (Ta = 25°C) I

📥 Download Datasheet

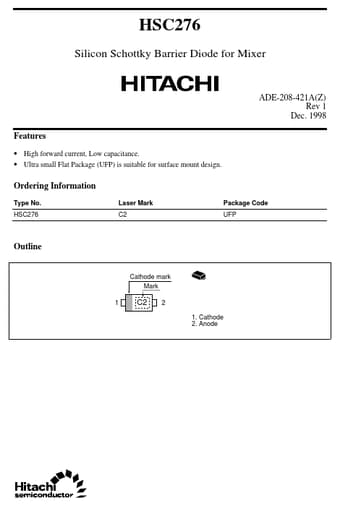

Preview of HSC276 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSC276
Manufacturer
Hitachi Semiconductor
File Size
24.26 KB
Datasheet
HSC276_HitachiSemiconductor.pdf
Description
Silicon Schottky Barrier Diode for Mixer
