HSC276A - Silicon Schottky Barrier Diode for Mixer

HSC276A Description

HSC276A Silicon Schottky Barrier Diode for Mixer ADE-208-836(Z) Rev 0 Feb.2000 .

HSC276A Features

* High forward current, Low capacitance.
* Ultra small Flat Package (UFP) is suitable for surface mount design. Ordering Information Type No. HSC276A Laser Mark S5 Package Code UFP Outline Cathode mark Mark 1 S5 2 1. Cathode 2. Anode HSC276A Absolute Maximum Ratings (Ta = 25°C)

📥 Download Datasheet

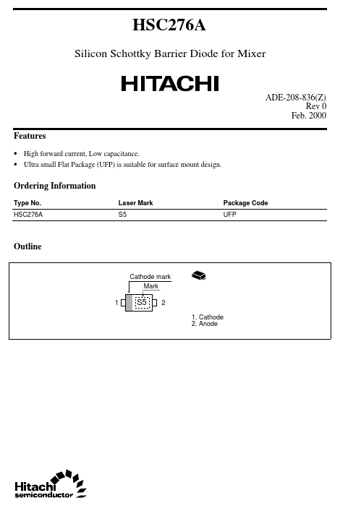

Preview of HSC276A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSC276A
Manufacturer
Hitachi Semiconductor
File Size
20.86 KB
Datasheet
HSC276A_HitachiSemiconductor.pdf
Description
Silicon Schottky Barrier Diode for Mixer
