HMC647 Datasheet, Shifter, Hittite Microwave

HMC647 Features

  • Shifter Low RMS Phase Error: 1.0° Low Insertion Loss: 4 dB High Linearity: +54 dBm Positive Control Logic 360° Coverage, LSB = 5.625° Die Size: 3.85 x 1.85 x 0.1 mm 5 PHASE SHIFTERS - CHIP

PDF File Details

Part number:

HMC647

Manufacturer:

Hittite Microwave

File Size:

283.45kb

Download:

📄 Datasheet

Description:

Gaas mmic 6-bit digital phase shifter. The HMC647 is a 6-bit digital phase shifter die which is rated from 2.5 to 3.1 GHz, providing 360 degrees of phase coverage, with a L

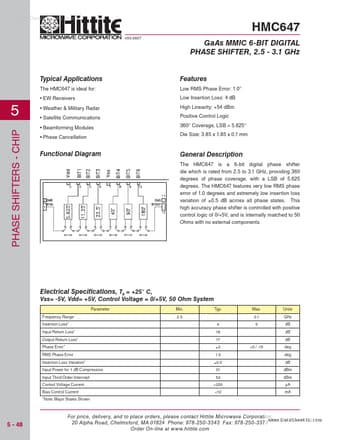

Datasheet Preview: HMC647 📥 Download PDF (283.45kb)
Page 2 of HMC647 Page 3 of HMC647

HMC647 Application

  • Applications The HMC647 is ideal for:
  • EW Receivers Features Low RMS Phase Error: 1.0° Low Insertion Loss: 4 dB High Linearity: +54 dBm Po
